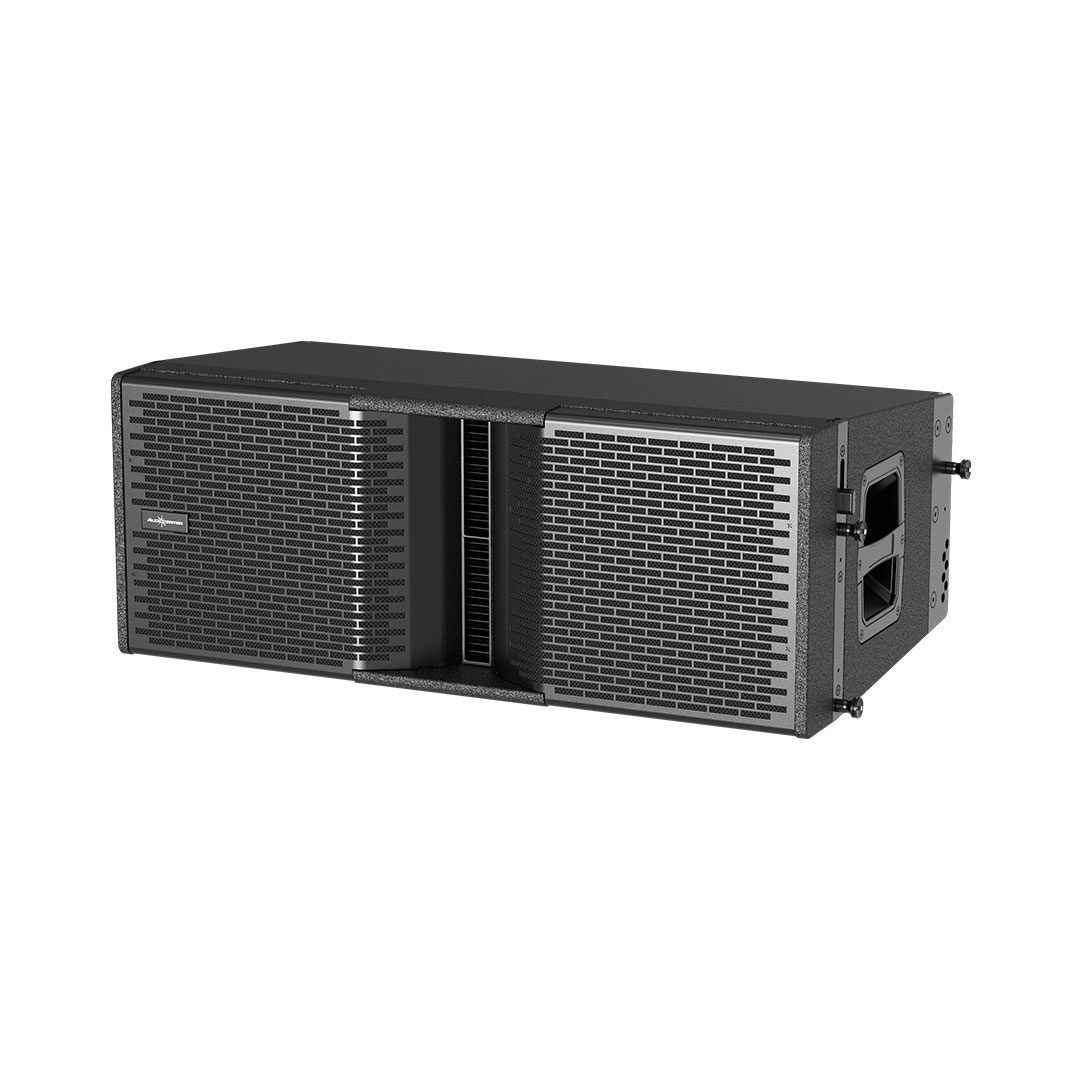

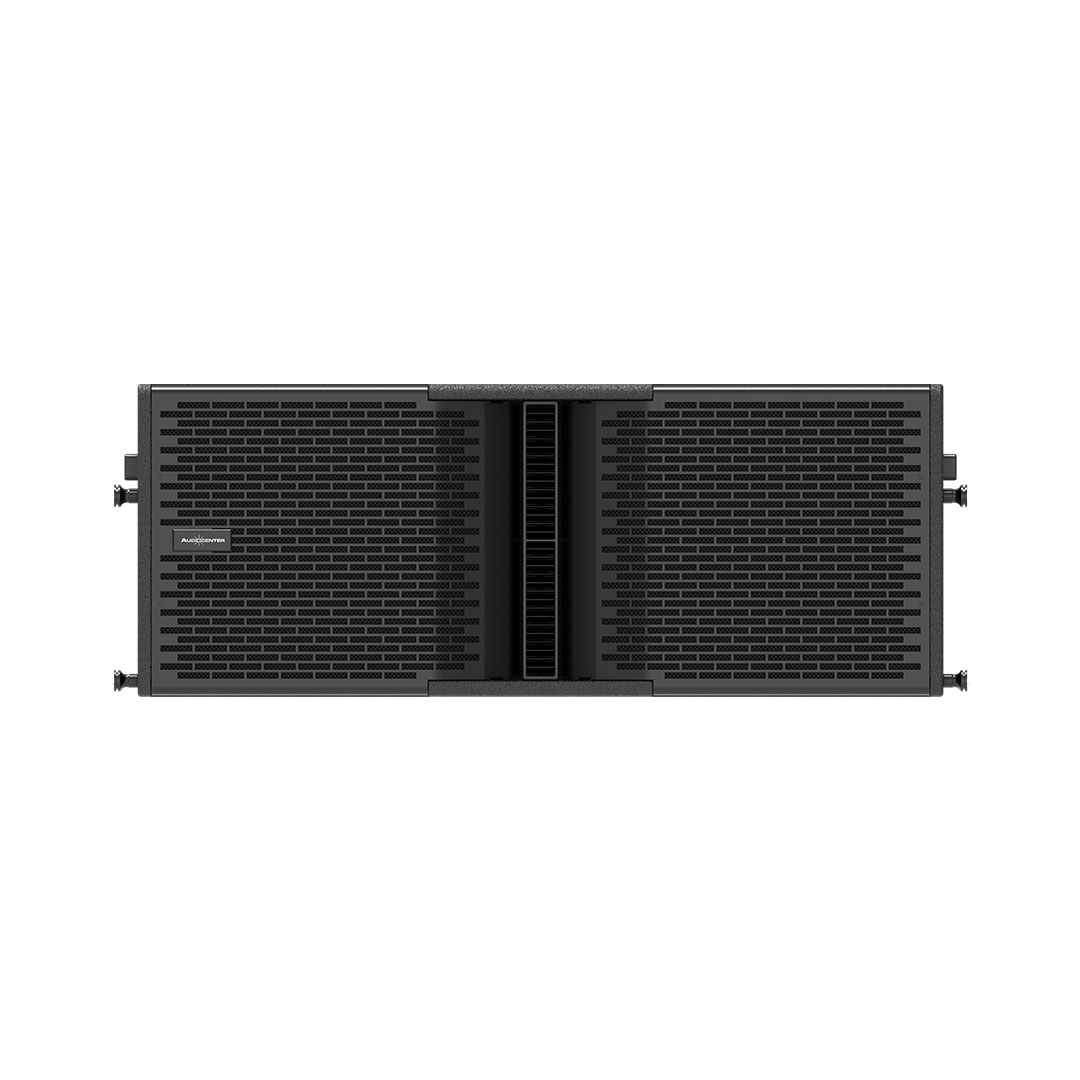

Audiocenter ASTRA 210A

Dual 10” two-way active DSP controlled line array loudspeaker

SKU: SPEAUD092 Categories: , ,
Share:

Description

The ASTRA 210A 10-inch two-way active line array is specially designed for small to medium-scale sound reinforcement and fixed install applications.

With the innovative ETETM waveguide, the ASTRA 210A achieves even high frequencies diffusion, delivering clear and powerful sound. The horizontal 90 degrees horn provides precise coverage to ensure the system output is uniform, full, and smooth, allowing to the audience an exceptional auditory experience.

The cabinet is made from high-quality CNC processed plywood and with polyuria coating, giving it the characteristics of being waterproof, wear-resistant and heat-resistant as well. The compact symmetrical cabinet structure not only ensures the stability and practicality of the cabinet but also effectively reduces its volume and weight, enabling easier installation and transportation. The ASTRA 210A stands out as an ideal choice for small to medium-scale sound reinforcement applications with its excellent sound quality, stability and flexibility.

FEATURES

Perfect integration of BrainCore™ technology achieves supreme performance of the loudspeaker system.
3 presets
High end DSP, with 96kHz signal sampling frequency, with FIR filter
Class D amplifier
Customized Audiocenter driver
Optimized, compact cabinet design
Durable polyurea coating is waterproof, wear and high temperature resistant.
CNC machined plywood cabinet

Type: Dual 10” two-way active DSP controlled line array loudspeaker Frequency Response (-10dB): 40Hz-20kHz Horizontal Coverage: 90° Vertical Coverage: Splay angle dependent Maximum Calculated SPL/1M (Continuous/Peak): 126dB/132dB HF: Customized driver, 2×1.75” voice coil,1.0” exit LF: Customized 2×10” driver, 2.5” voice coil DSP Processor: 96kHz signal sampling frequency, FIR filtering Presets : LINEAR,2 Units, W/SUB AMPLIFIER Amplifier Circuitry: Class D Power (RMS standards): 1600W Peak Power: 3200W Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB) Intermodulation Distortion (20Hz-20kHz, half power): ＜0.05% Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω): ＜0.05% Cooling System: Cooling with fans Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection Signal Input Connectors: Female XLR Signal Output Connectors: Male XLR Power Input Connectors: Power connector Power Output Connectors: Power connector AC Power Operating Range: 100V-130V~ or 220V-240V~(±10%,50/60Hz) Power consumption (1/8 output power): 117W CABINET Cabinet Material: CNC made of excellent wood Angle Adjustment: 0°,2°,4°,6°,8°,10° Coating: Durable Polyurea Coating Cabinet Colour: Black Grille: Iron mesh Handles: 2 side,2 rear Optional Accessories: Frame for flying and ground stacking / Flightcase with 100mm wheels / Rain bag / Dolly Speaker Dimension (W×H×D): 760×295×412mm Carton Dimensions (W×H×D): 899×374×595mm Net Weight: 30.0kg Shipping Weight: 34.0kg

Additional information

Weight 34 kg
Dimensions 90 × 40 × 60 cm
Brand

Audiocenter
