AUDIOCENTER GT512A

Name: AUDIOCENTER GT512A
SKU: SPEAUD078
Availability: InStock

Original price was: R12,198.00.Current price is: R11,711.00.

Active DSP-Controlled Full Range Loudspeaker

SKU: SPEAUD078 Categories: Active PA Speakers, Live Sound, Speakers & PA Systems

Description

Active DSP-Controlled Full Range Loudspeaker

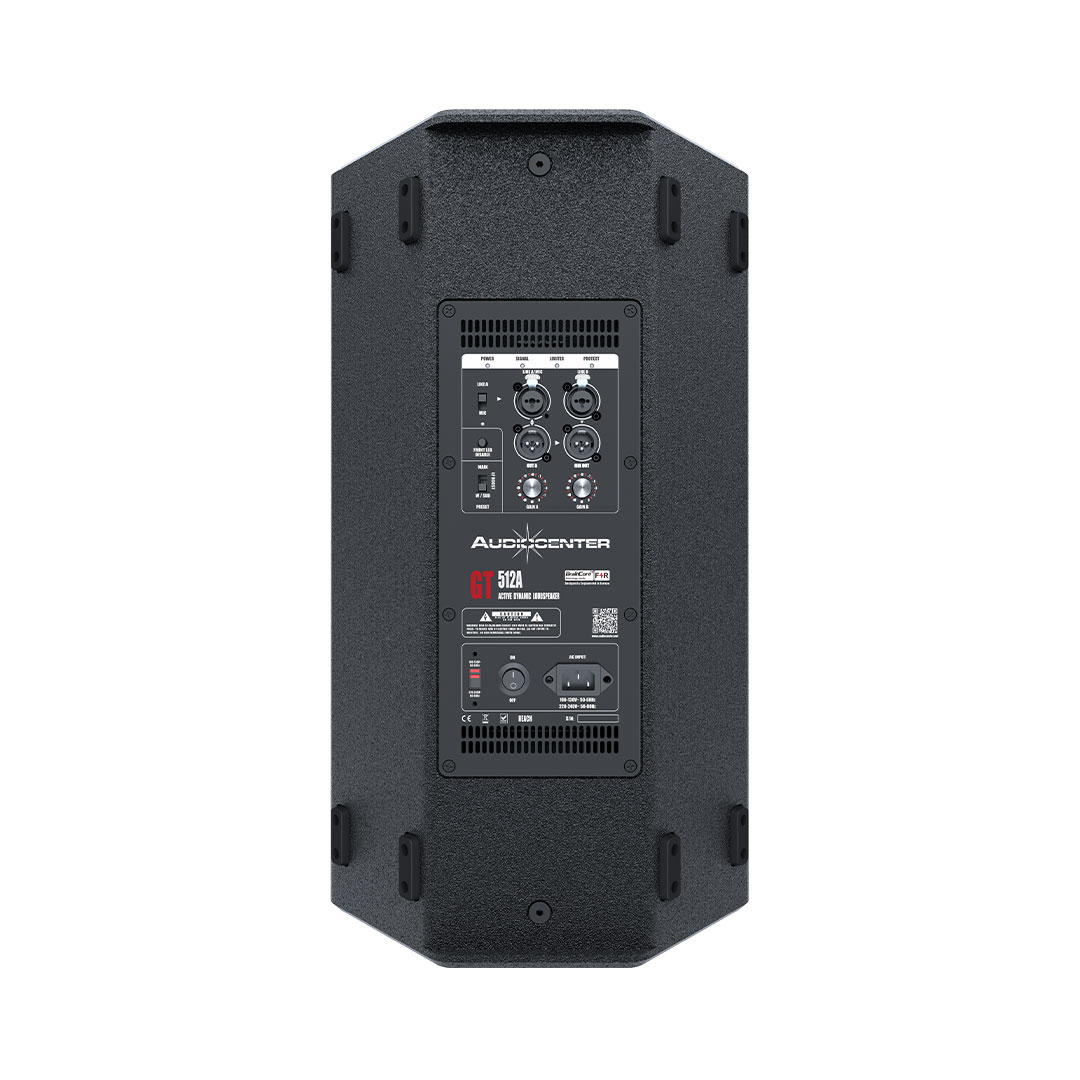

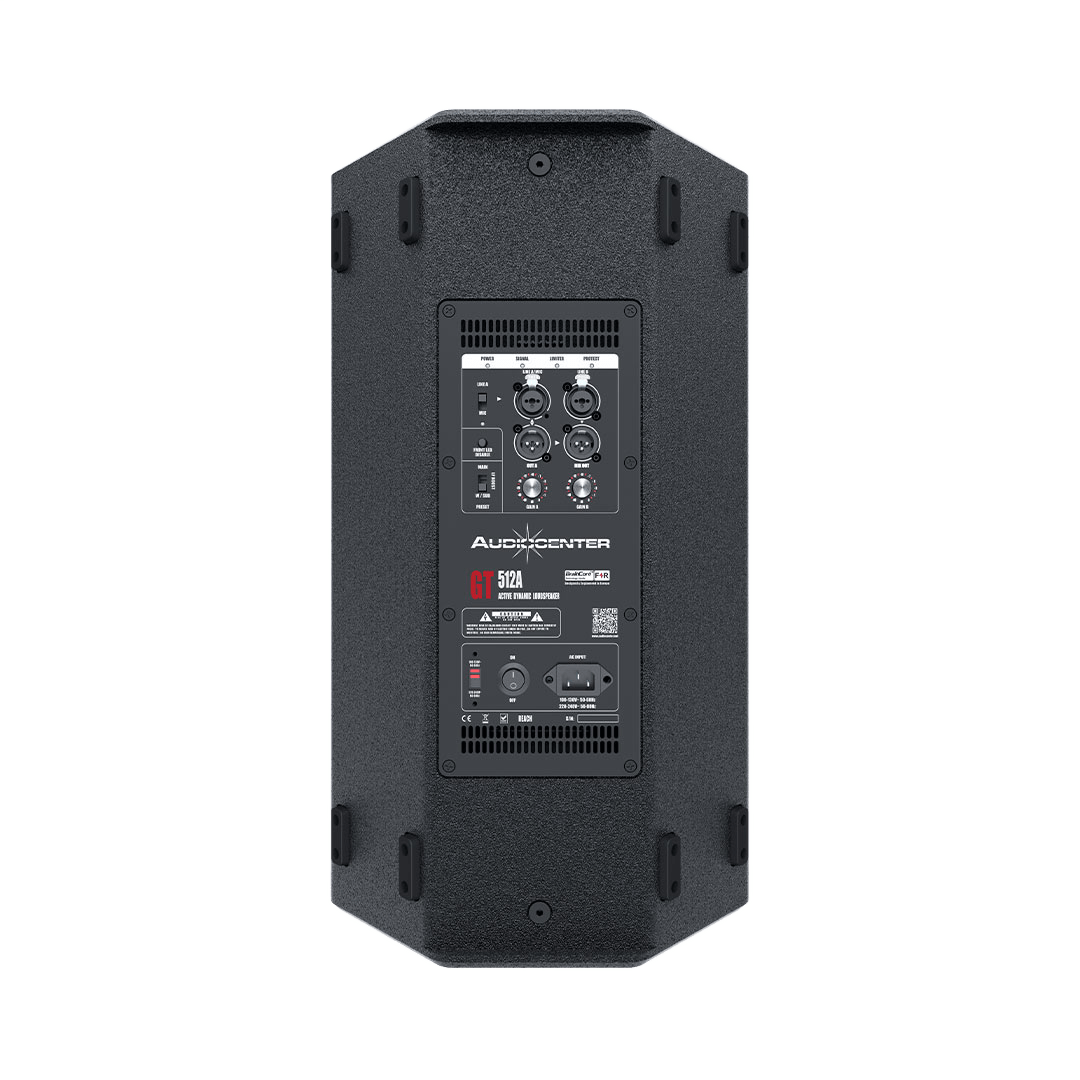

The GT512A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.

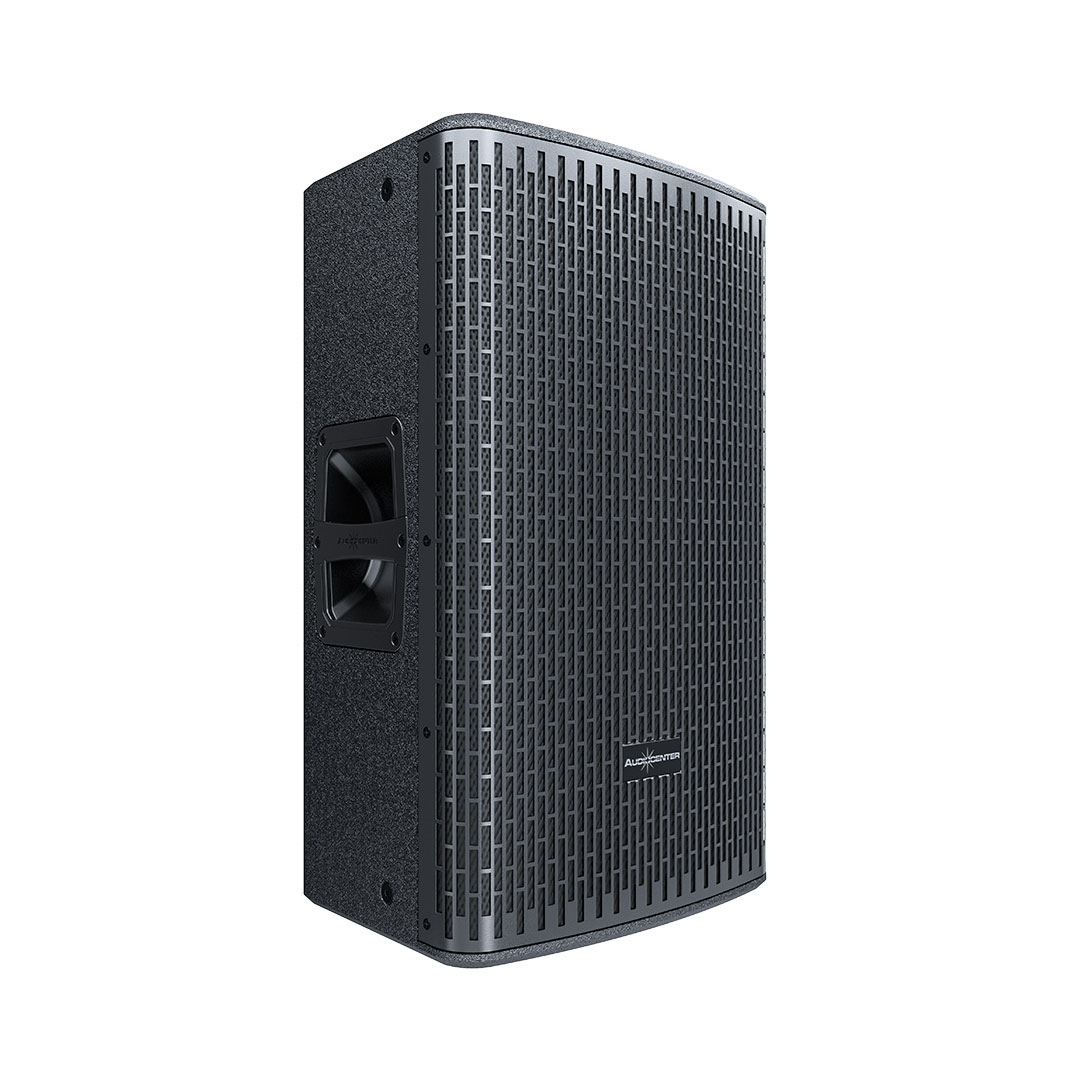

The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.

Type: Active DSP-controlled full range loudspeaker Frequency Response (-6dB): 45Hz-20kHz Maximum Calculated: 128dB/134dB SPU1 M (Continuous/Peak) LF: Customized 12” driver, 3” voice coil HF: Customized driver, 1.0” exit, 1.75” voice coil Horizontal Coverage: 90°/60° Vertical Coverage: 60°/90° AMPLIFIER Amplifier Circuitry: Class D Power (Peak): 2200W Frequency Response (1W 80 2ch): 20Hz-20kHz(±0.5dB) Intermodulation Distortion: <0.05% Total Harmonic Distortion: <0.05% Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection. Cooling System: Cooling with fans, air convection DSP Processor: 48kHz signal sampling frequency, FIR filtering Presets: MAIN, LF BOOST, W/SUB Output/ Input Signal Input: 2x female XLR, Mono jack 6.35, Signal Output: 2x male XLR Power Input: IEC power connector Working Voltage: 100V-130V or 220V-240V (±10%,50/60Hz) Power consumption ( 1 /8 output power): 95W Cabinet Cabinet Material: CNC machine plywood Monitor Angle: Symmetrical 45° monitoring Angle Hanging Hardware: MB screw Pole Mount: Base hole Diameter 35mm, 0° or 10° options Optional accessories: U bracket Cabinet Colour: Black is the default colour. Coating: Durable Polyurea Coating Dimension (WxHxD): 355x599x349mm Net Weight: 21.0 kg

Additional information

Weight	21 kg
Dimensions	35.5 × 59.9 × 34.9 cm
Brand	Audiocenter
Colour	Black
Enclosure	Ply
Flyable	Yes
Speaker Size	12"
Total Power	2200W
Battery Operated	No
Bluetooth	No
DSP	Yes
Amp Out	No
Inputs	2x XLR, 2x 6.3mm
Max SPL	134 dB
