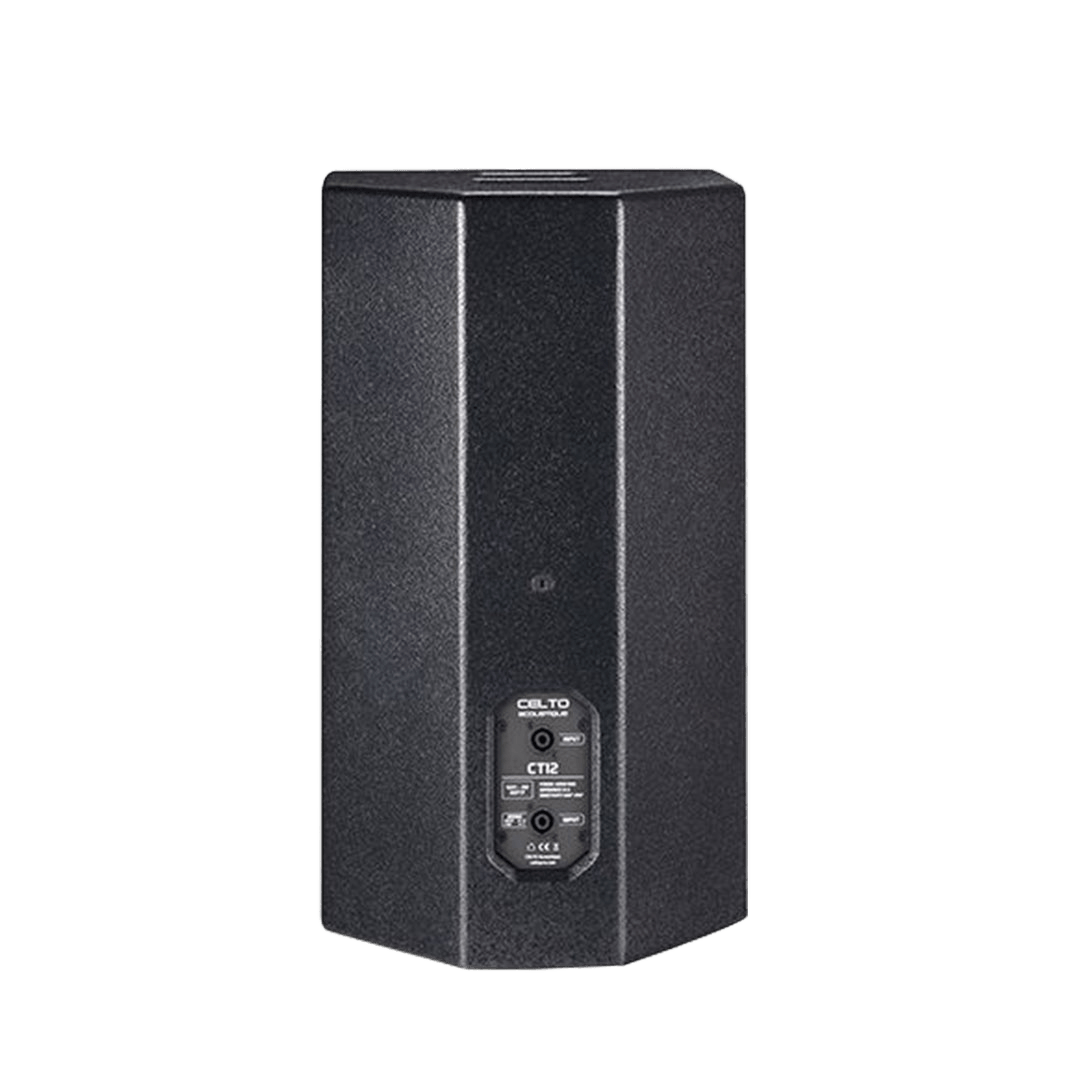

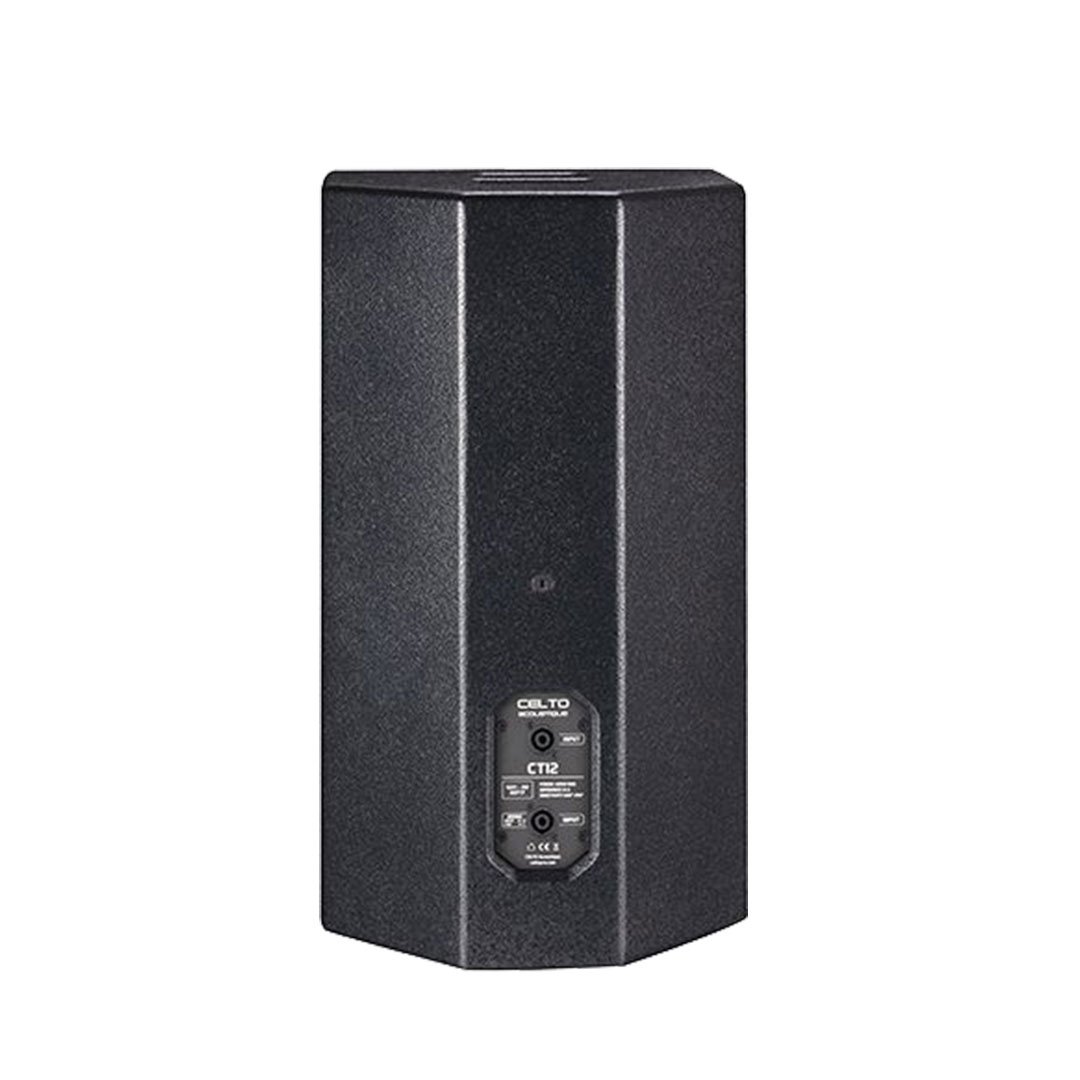

Celto Acoustique CT12V 12″ 500W full range

500W RMS / 200W Peack

Nominal impedance

8 Ohm

Frequency response (-6dB half space, no EQ)

51~22000Hz

Manufacturing Consistency tolerance

±2dB from 300 to 10000Hz

Average Sensitivity

97dB/W/m (wideband 200~16000Hz)

Maximum Calculated SPL @ 1m

123dB continuous / 129dB Peak

Nominal Directivity (-6dB)

80° x 50° above 1200Hz

Recommended low cut filter

40Hz 24dB/oct in full range mode,80-120Hz with subwoofer

Low Frequency driver

12″ CELTO driver, 3” In / Out Voice coil

High Frequency driver

1” exit CELTO ACD40, 1.7” Voice coil, HSP Annular Ring Radiator

Crossover

Passive mode only 1600Hz, 12dB/oct on LF, 18dB/oct on HF

Flying hardware

12 M8 points

Connectors

2x NEUTRIK SpeakON® NL4MP

Floor Monitor use

Yes, 2 symmetric angles

Pole mount

35mm top hat (0° and 10° angles)

Cabinet

CNC made with tongue and grove assembly,15mm birch plywood

Finish

Black Textured Waterborne Coating

Size (WxHxD)

356x620x345 mm

Weight

20kg net, 25kg gross
