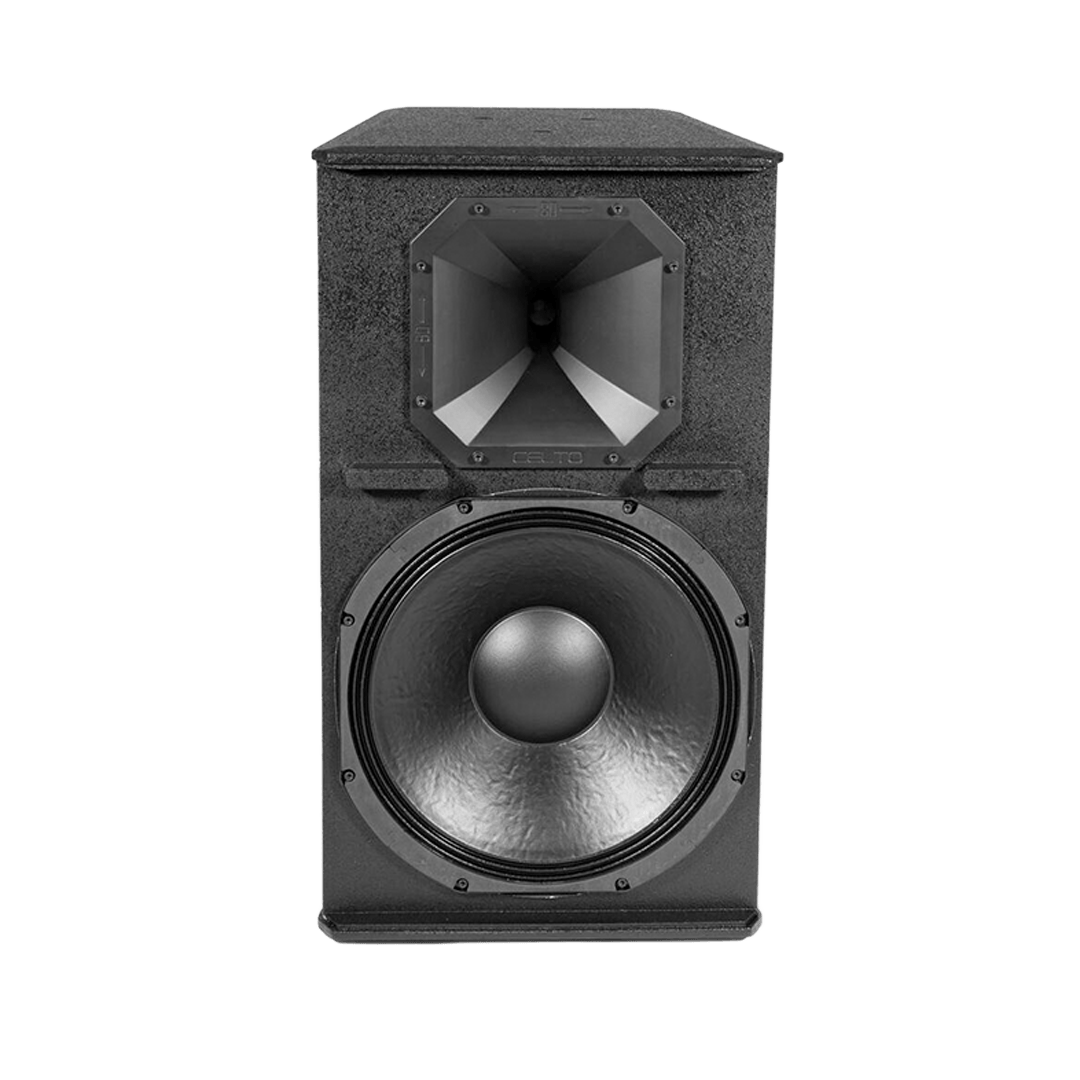

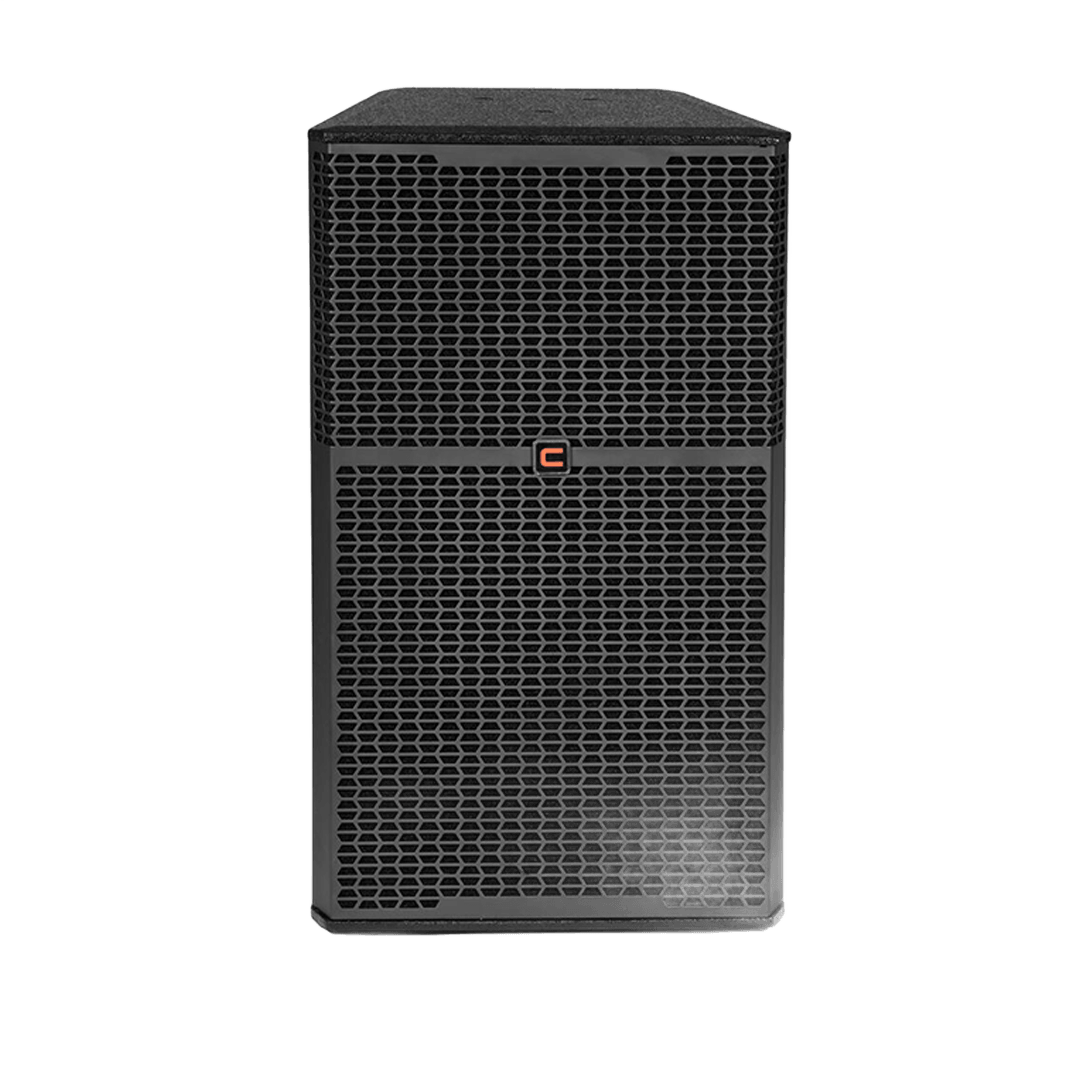

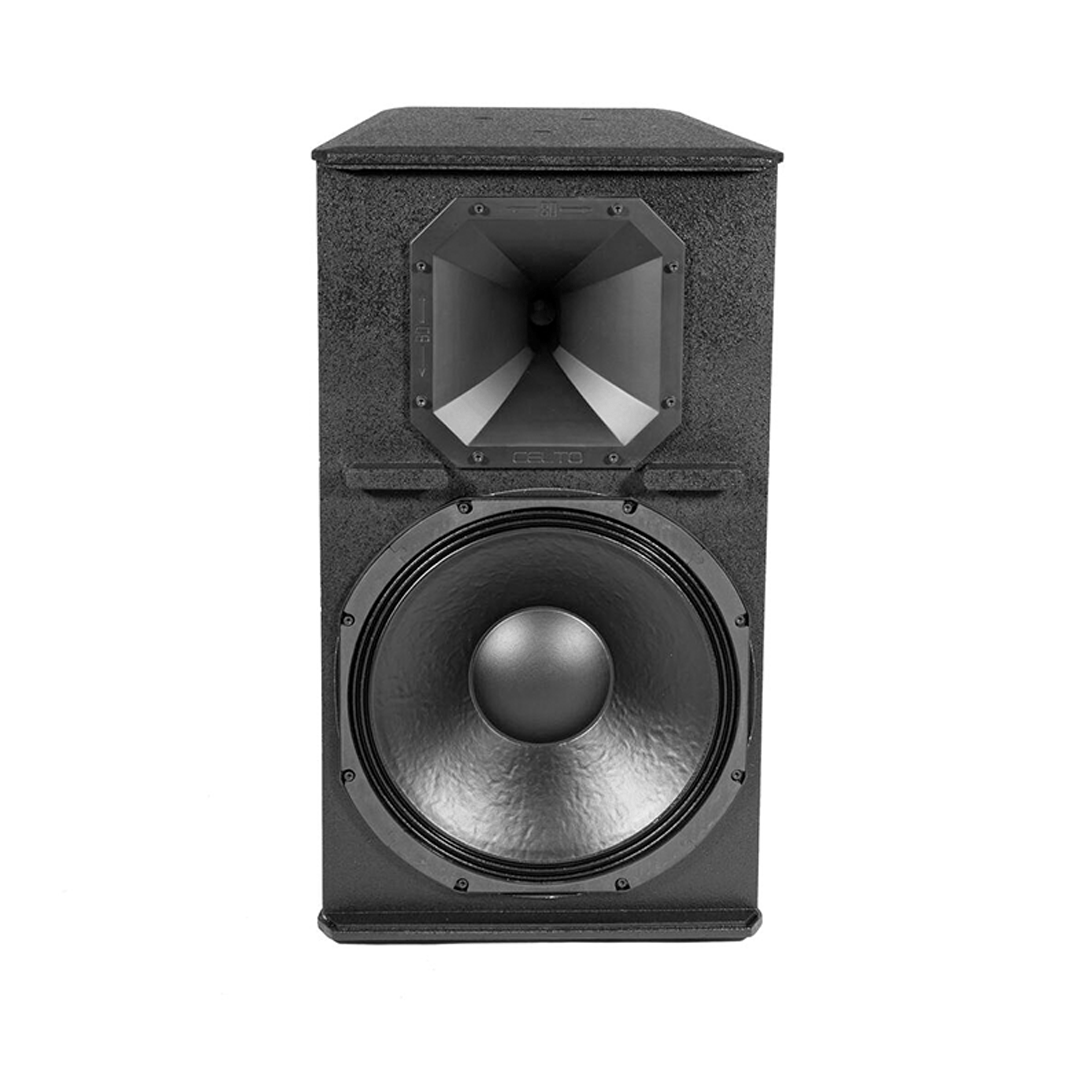

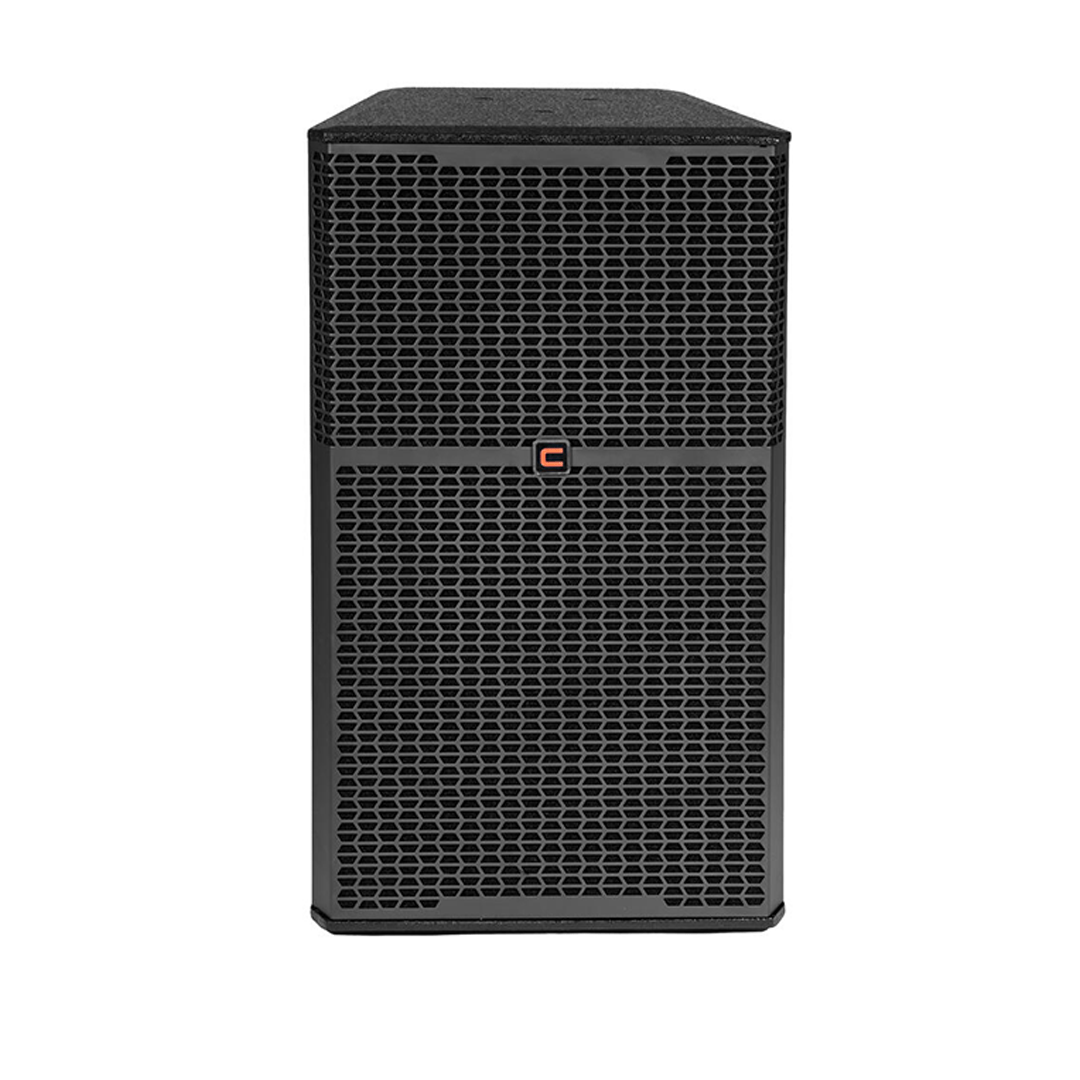

Celto Acoustique PM15 G3

2-way Fullrange Loudspeaker

Perfectly built speaker

Horn 90 degree rotatable for horizontal or vertical use

Complies with DIN 18032-3 (Ball-proof)

Dual flange

With rigging points

Built with NEUTRIK connector

CELTO ACOUSTIQUE driver

For application areas such as: Theater; music school; concerts/FoH’s; restaurants, bars and hotels; sports centres/gyms; architecture; multi-purpose hall

Power:

Frequency range:

38 – 22000 Hz

Sensitivity:

98 dB (1W/1m)

Max. SPL:

133 dB

Dispersion angle:

80° x 50° rotatable horn

Impedance:

8 ohms

Standard:

DIN 18032-3 (Ball-proof),

Attachment system:

Dual flange: Ø 35mm (0°/10°)

Flying points:

16 x M8 thread

Connections:

Speaker via 2 x 4-pol SpeakON mounting version (F)

Crossover frequency:

Passive 1400 Hz

Recommended

35 Hz, 24db/oct in full-range mode

60-140 Hz with subwoofer

Speaker:

1 x woofer 15″ with ferrit magnet

Basket material: aluminum

Voice coil woofer in/out wound 3,5″

1 x annular compression driver 1″ with ferrit magnet

Voice coil annular 1,75″

Diaphragmmaterial: PEEK (H.T. polymer)

Type of speaker:

Compact cabinet speaker

Type of construction:

Transmission line

Use of brands:

Built with NEUTRIK connector

CELTO ACOUSTIQUE driver

Material:

Birch multiplex, CNC made with tongue and grove assembly

Color:

Black, textured coating, painted

Dimensions:

Weight:

30,65 kg
