Celto Acoustique SD7000 Amplifier

Class D multi-channel PA amplifier with SMPS, 2 x 2000 W RMS (8 ohms), 2 x 3500 W RMS (4 ohms)

(19″) 48.3 cm rack installation 1 U

Highly efficient air flow from front to rear

The device is cooled by temperature-controlled fan

Built with NEUTRIK connector

Power supply:

100-240 V AC, 50/60 Hz

Protection class:

Protection class I

Output power:

2 x 2000 W RMS (8 ohms)

2 x 3500 W RMS (4 ohms)

2 x 4000 W RMS (2 ohms)

Frequency range:

6 – 20000 Hz

S/N ratio:

>107 dB

THD:

60 V/µs

Damping factor:

>800

Crosstalk:

>75 dB

Control elements:

Power switch, level control per channel, mode switch (stereo/parallel/bridged)

Controls:

Short-circuit; Overvoltage; current limiting; overload; overheat

Status LED:

Power, signal, limit, protect

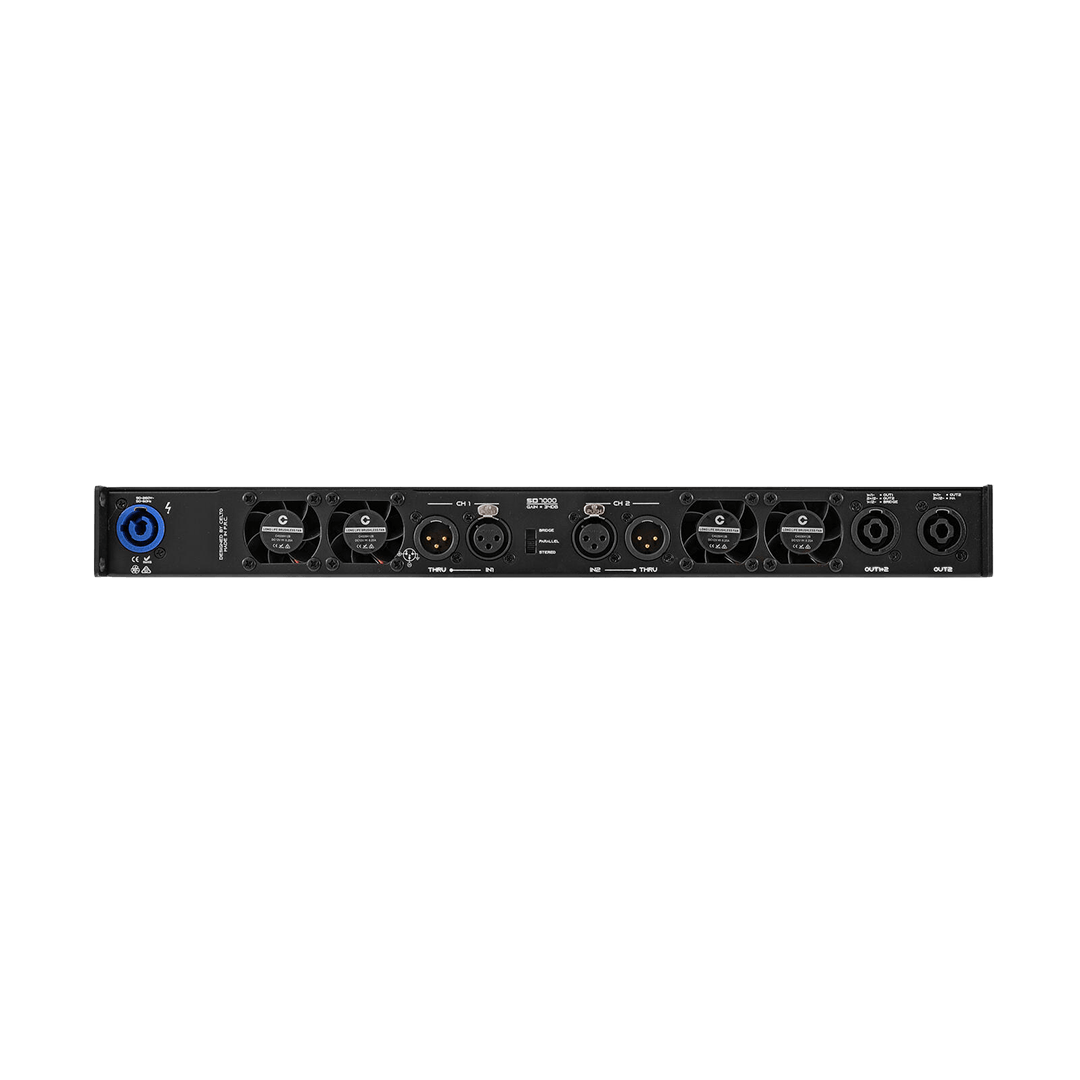

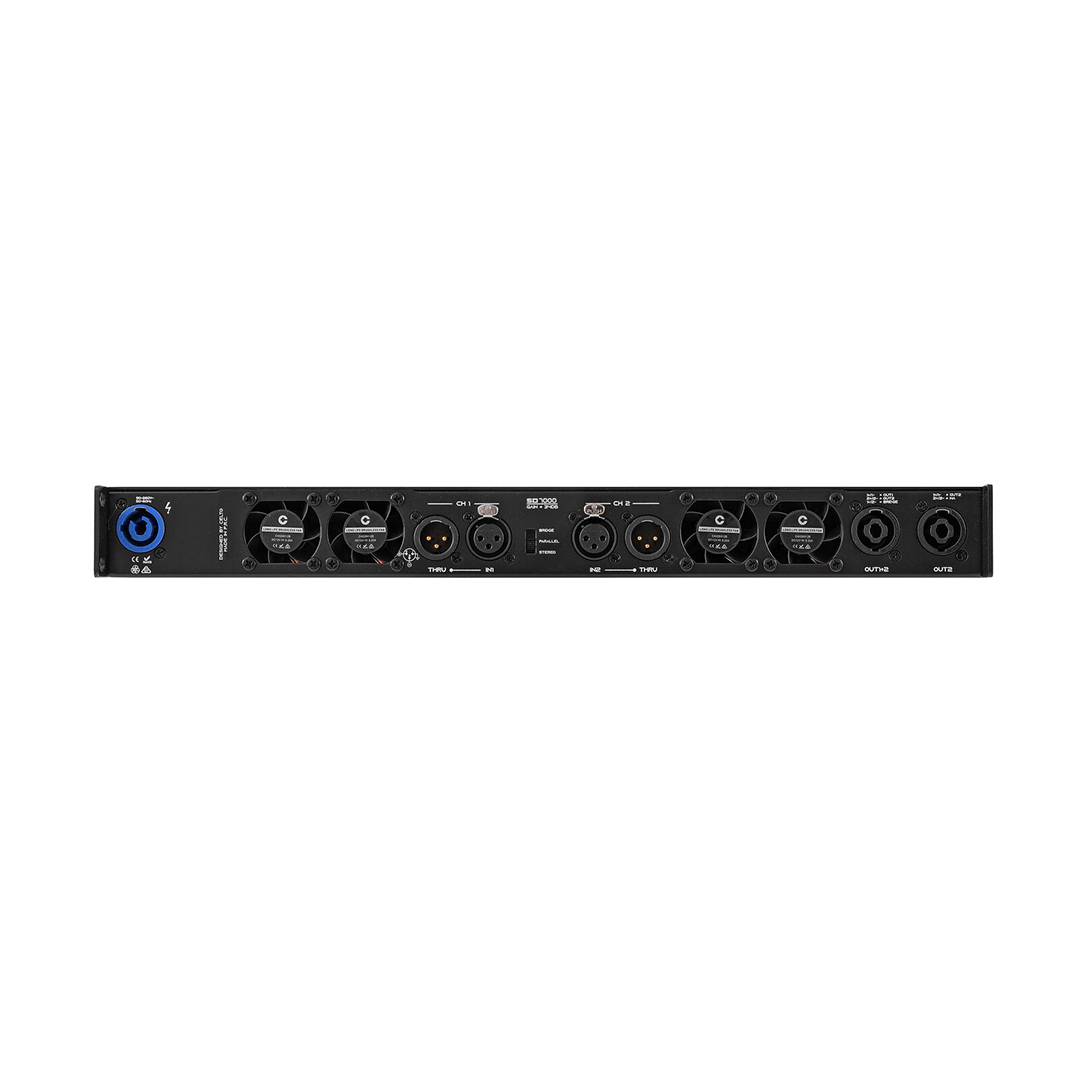

Connections:

Max. level:

Input: +20 dBu, bal.

Use of brands:

Built with NEUTRIK connector

Housing design:

(19″) 48.3 cm rack installation 1 U

Dimensions:

Weight:

7,10 kg
