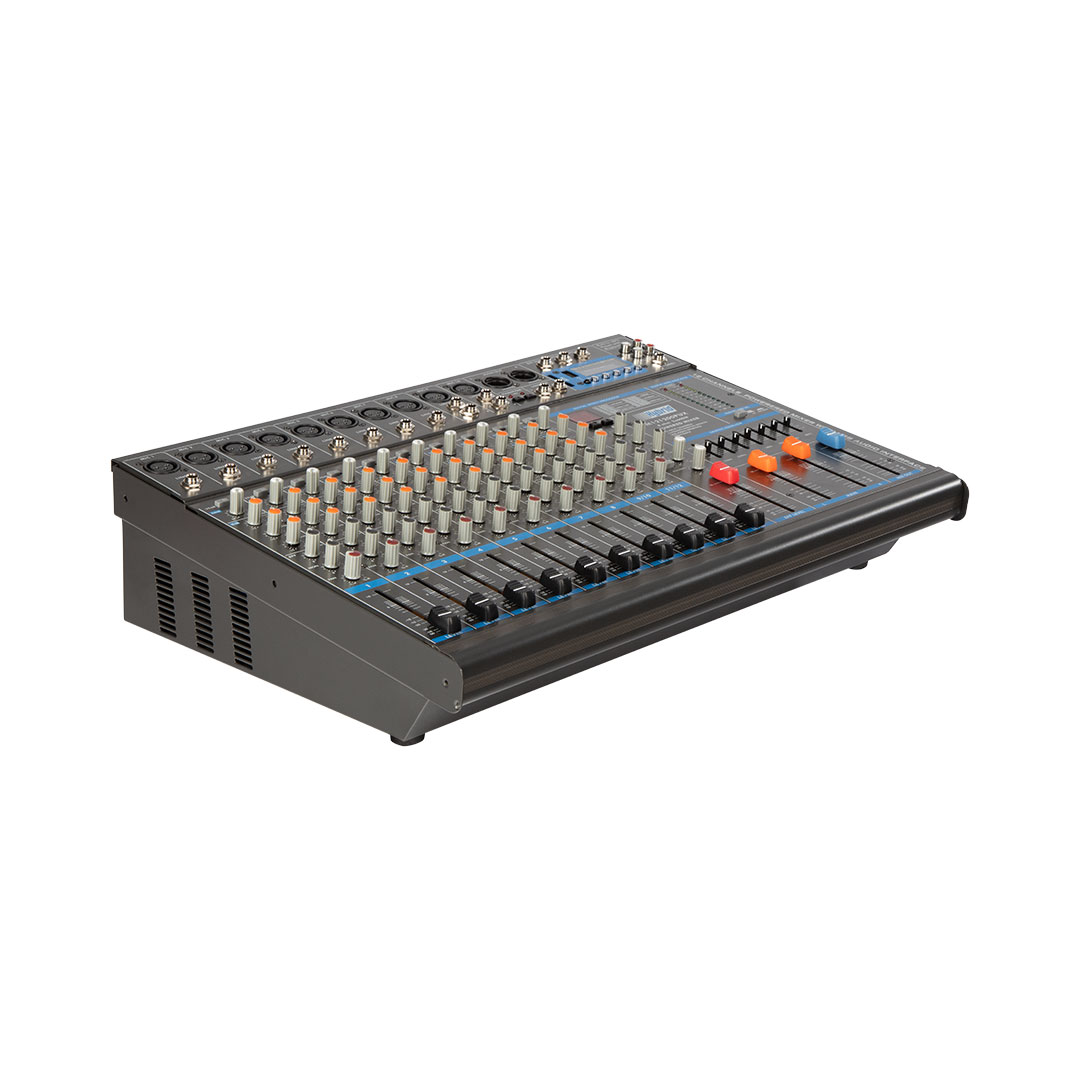

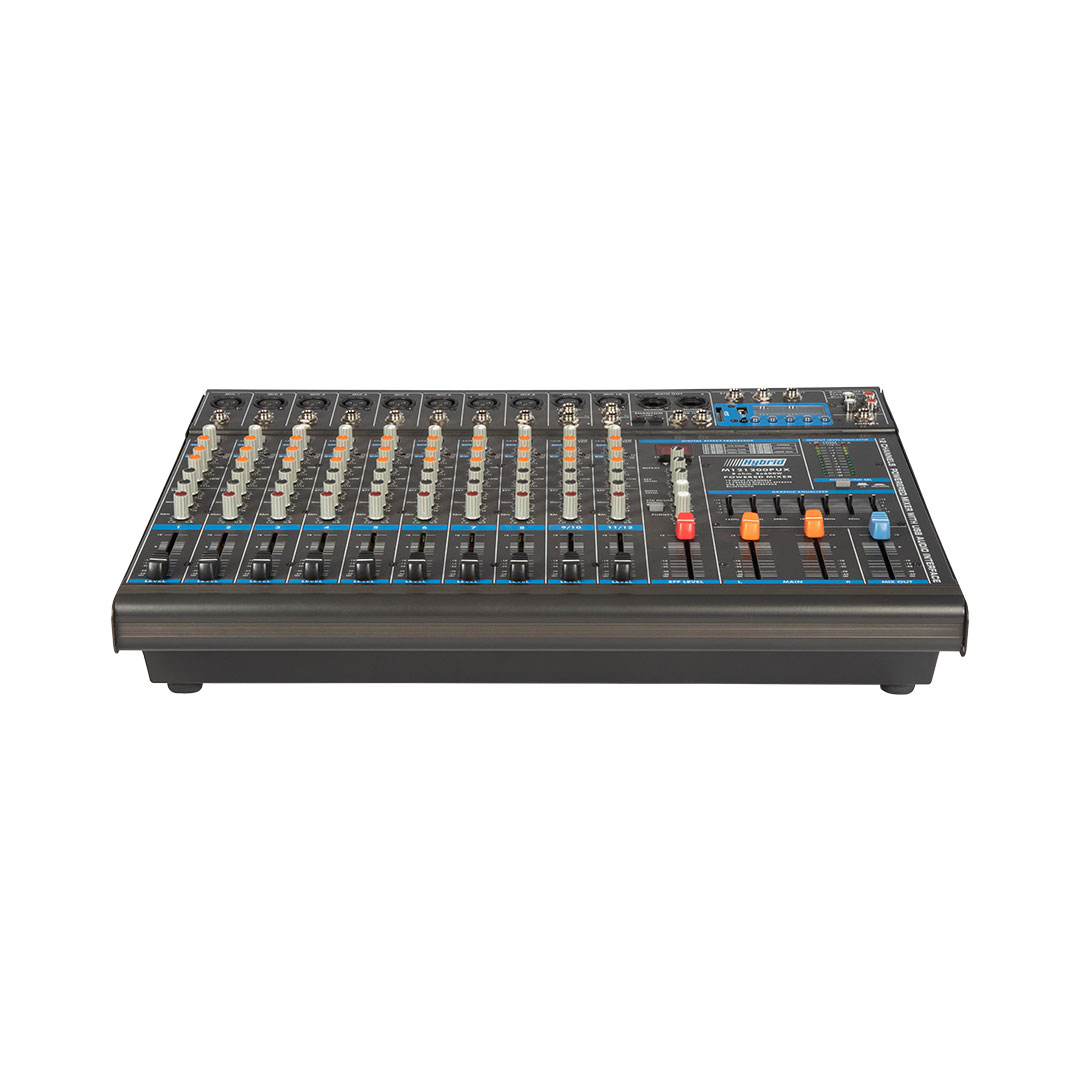

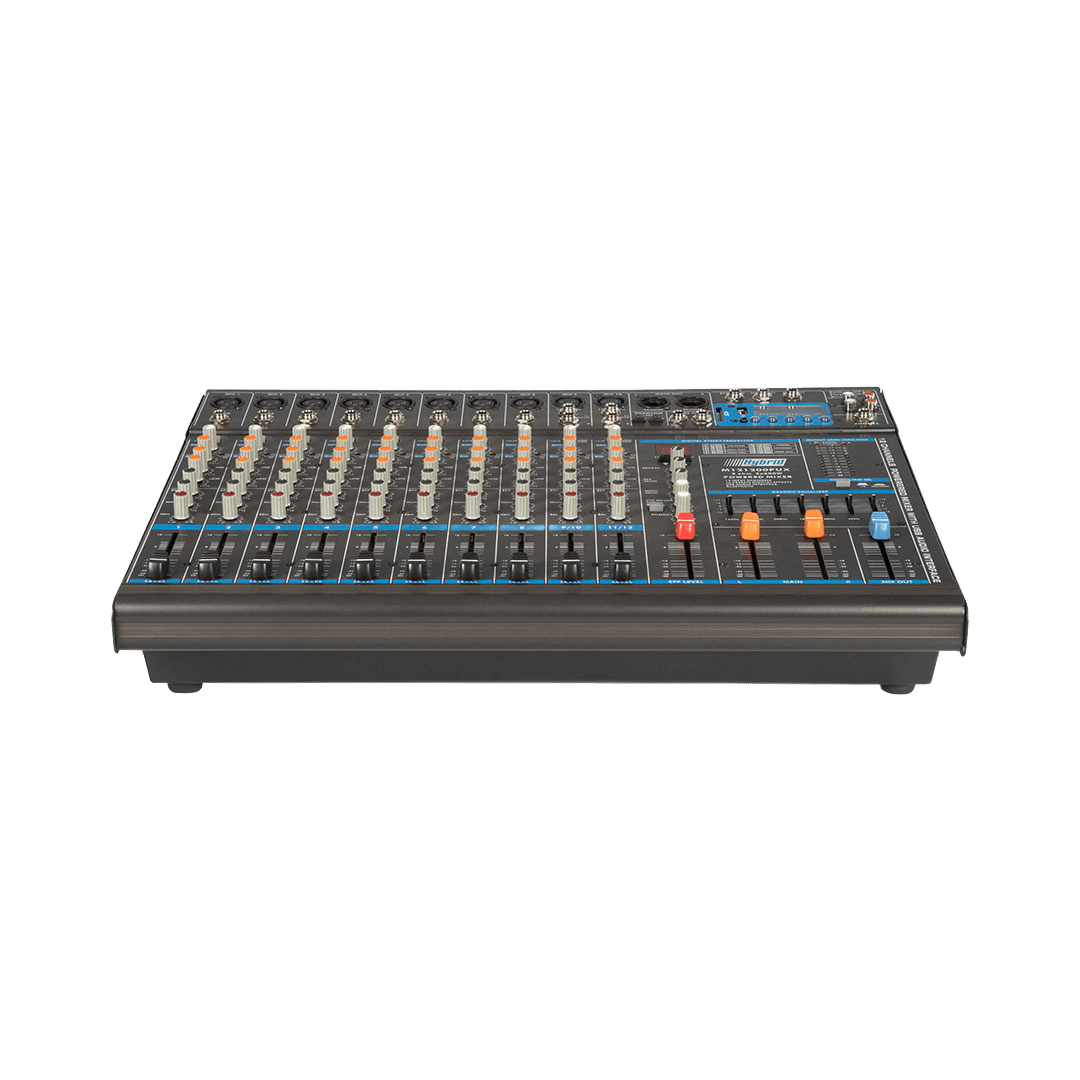

Hybrid M121200PUX

Powered Analogue Mixer

The Hybrid M121200PUX is a 12-channel stereo mixer with 8 × mono mic/line inputs, 2 × stereo line inputs and 2 × 600W loudspeaker outputs. The M121200PUX hosts a number of features, such as a built-in MP3 media player, a digital effects processor and switched phantom power for condenser microphones. This makes it ideal for small productions that require a powered mixer solution, such as those commonly hosted at schools, smaller places of worship and venues with small stages.

Features

8 Mono Channels: Mic XLR or ¼” jack line input with a -20dB switch, rotary gain control, a peak overload LED, HI, MID and LOW EQ, effects send, monitor send, L/R pan and 60mm level faders

2 Stereo Channels: Mic XLR or 2 × ¼” jack line inputs with a -10dB line pad switch, rotary gain control, a peak overload LED, HI, MID and LOW EQ, effects send, monitor send, L/R balance and 60mm level faders

Input: 2 × RCA 2-track inputs

MP3 Media Player: Bluetooth, USB port and SD card port

Effects: 16-effect digital processor with 2 × effect selector switches, a 60mm effects fader, repeat control, effects send control, monitor send control, a 2-track/MP3 switch, 2-track/MP3 control and headphone control

Phantom Power: 2 × switches, one for channels 1–7 and one for channels 8–10, which are for condenser microphones

Master Channel: 7-band graphic equalizer, main mix left and right 60mm faders, a mix out 60mm fader and L/R or mix/mono bar graph switch dual 12 LED level meter

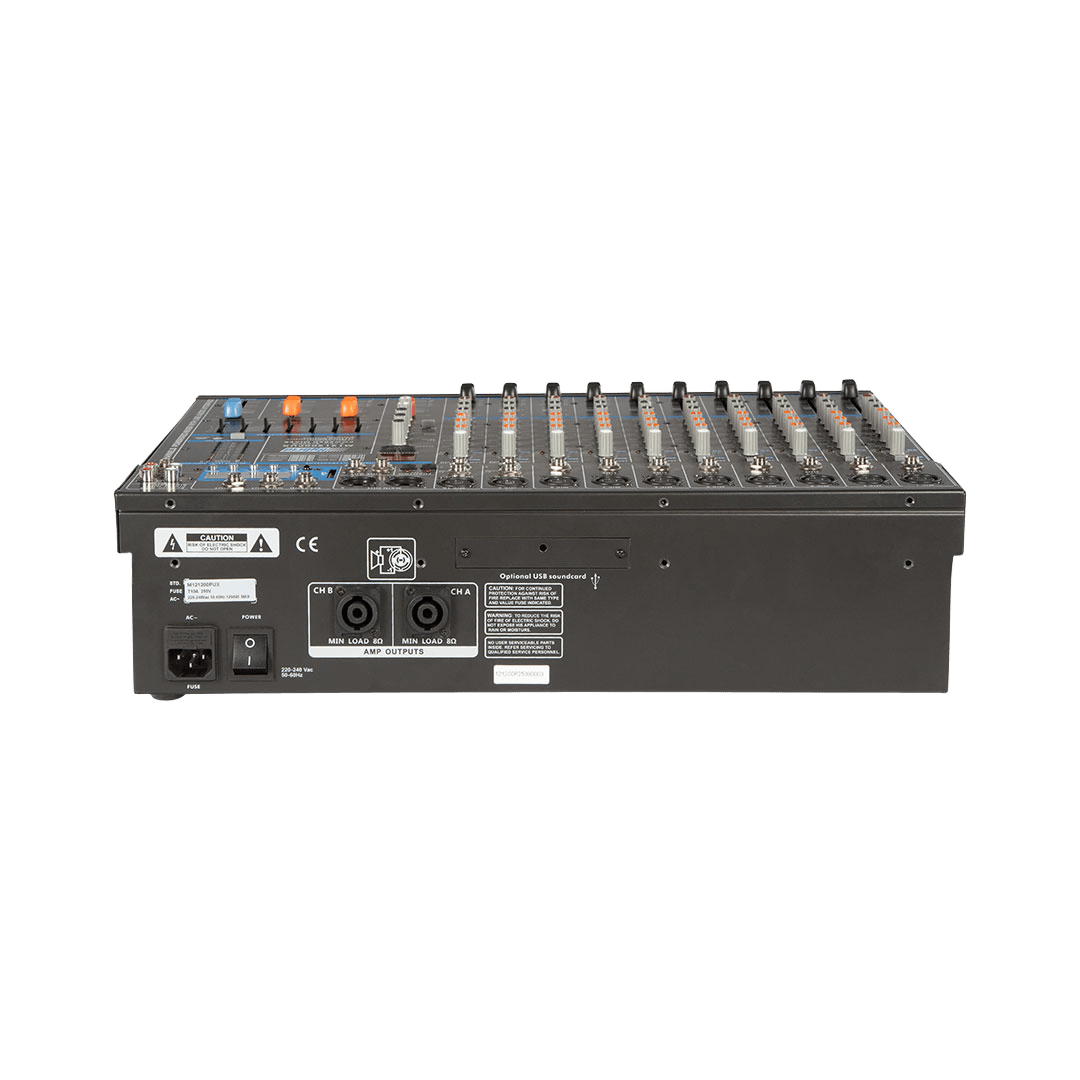

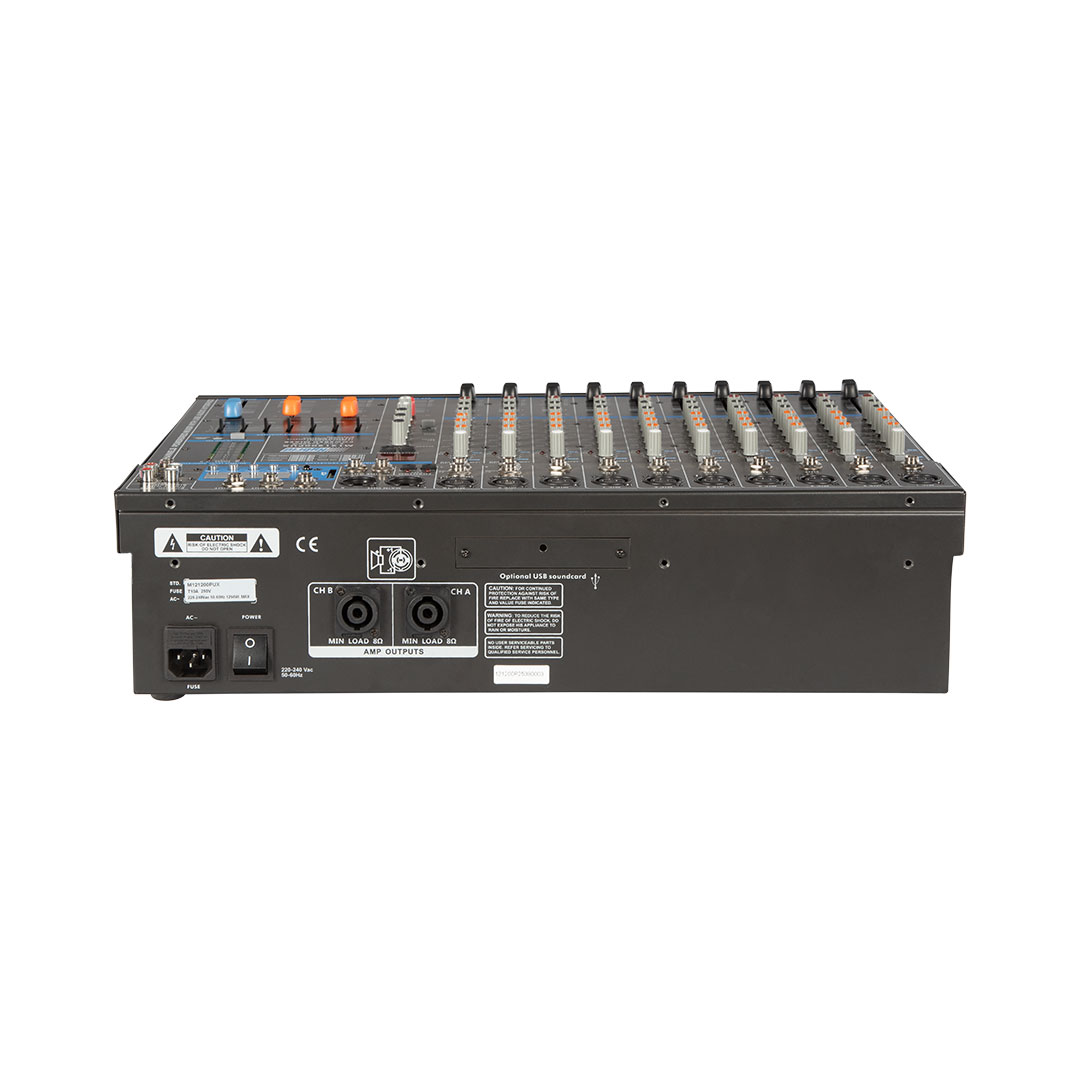

Outputs: 2 × balanced XLR or 2 × unbalanced ¼” jack main outputs, ¼” jack effect send, ¼” jack mono output, ¼” jack mix output and 2 x RCA record outputs

Powered Outputs: 2 × 600W RMS @ 4Ω both channels driven, Speakon outputs (minimum load per channel: 4Ω)
