Lab Gruppen E5:4 500 Watt Amplifier

The Lab Gruppen E5:4 500 Watt Amplifier:

The Lab Gruppen E5:4 500 Watt Amplifier is a powerful and compact amplifier designed for various installation applications. With its 500-watt output and four flexible channels, it excels in space-saving and cost-efficiency. The amplifier’s 1U rack-mountable form factor is ideal for tight spaces, making it a smart choice for professional setups.

Energy efficiency is a key feature, as the E5:4 boasts Energy Star certification, ensuring low running costs and green credentials. The IntelliDrive system allows for delivering 125 watts per channel at either 70V constant voltage or low impedance loads, including 2, 4, 8, and 16 Ohms. This flexibility maximizes system efficiency and allows for customized configurations.

The amplifier supports asymmetric channel loading, enabling users to mix and match different impedances to optimize performance. High efficiency translates to reduced power consumption and minimized heat output, lowering demands on mains distribution and cooling systems. The IDEEA (IntelliDrive Energy Efficient Amplifier) technology, featuring a Class-D output stage, provides superior performance with minimal distortion.

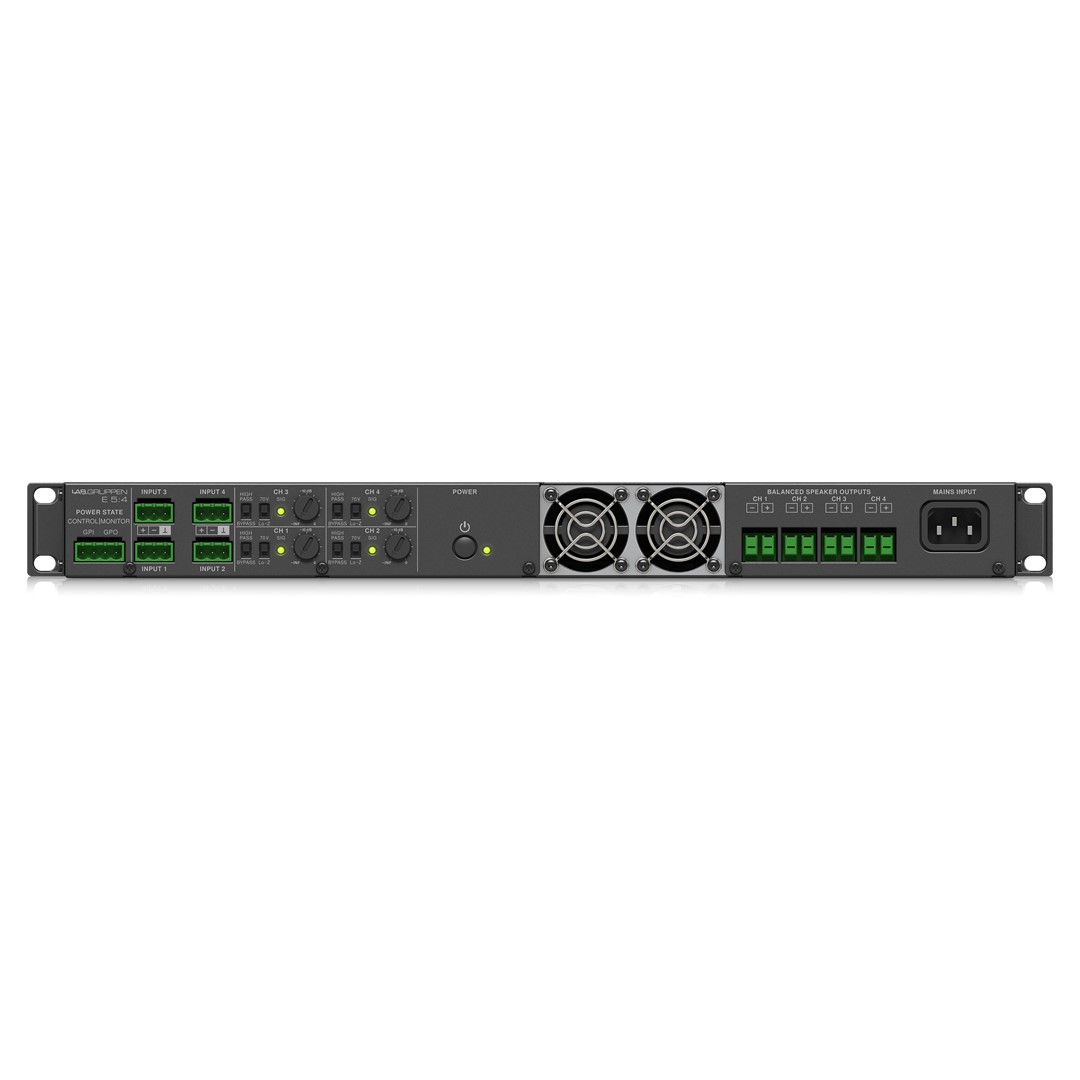

Fail-safe circuit protection ensures reliable operation even under challenging conditions. The auto-standby and auto-power-on features keep power consumption below 1 watt during inactivity, enhancing efficiency. The Rail Sense Limiter (RSL) reduces signal clipping and simplifies configuration for various load types. Additional features include a built-in 50 Hz high-pass filter, per-channel attenuation knobs, and signal LEDs on the rear panel for easy setup.

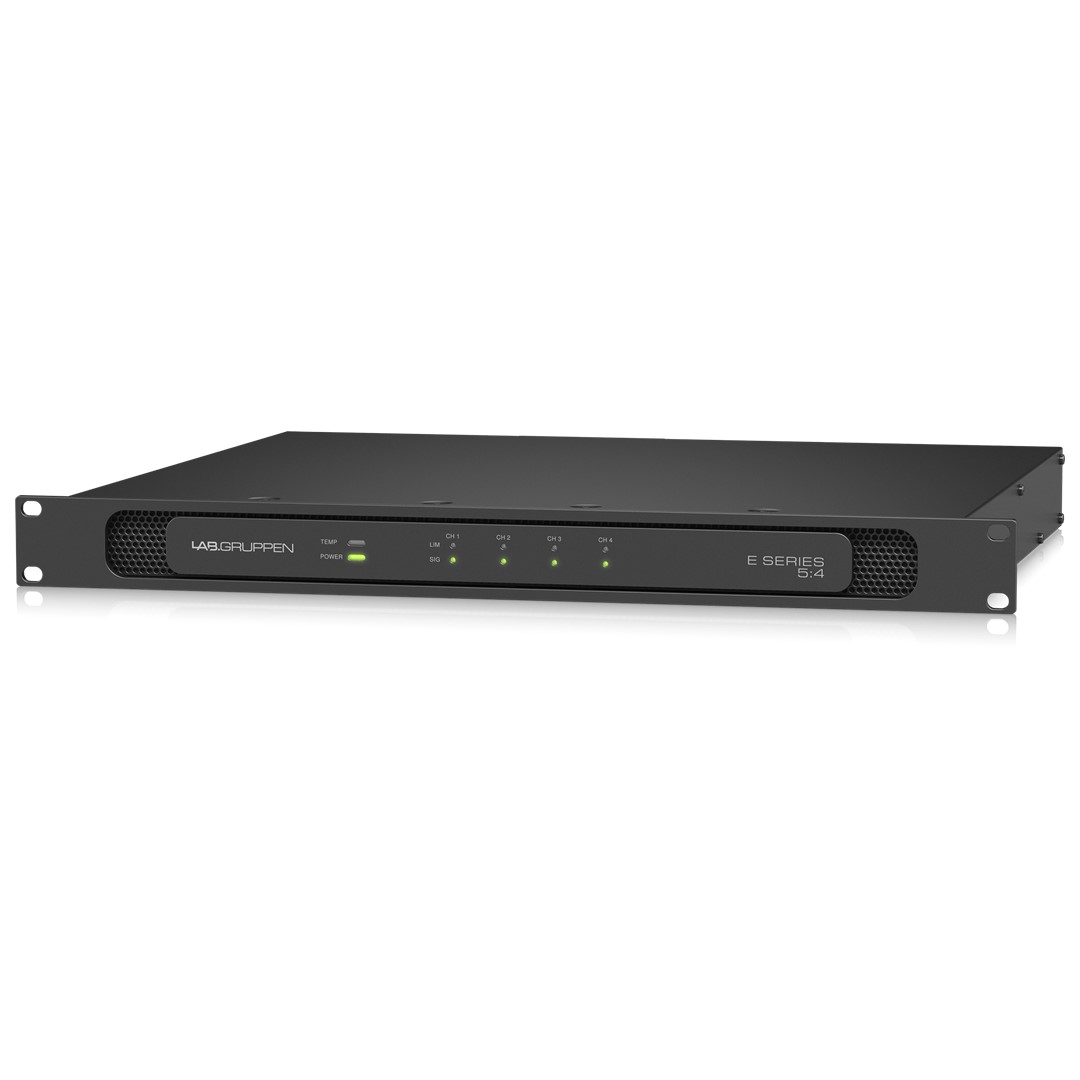

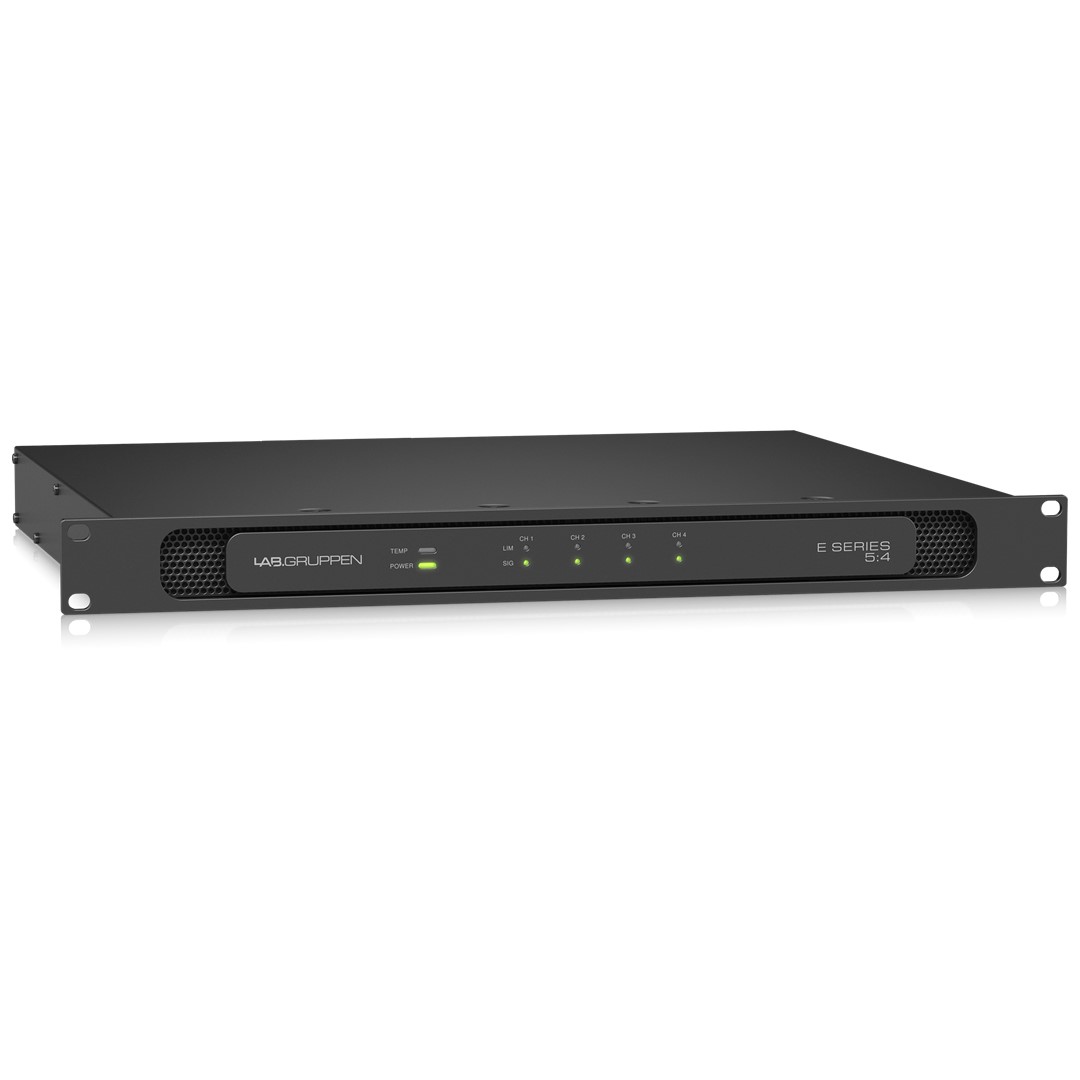

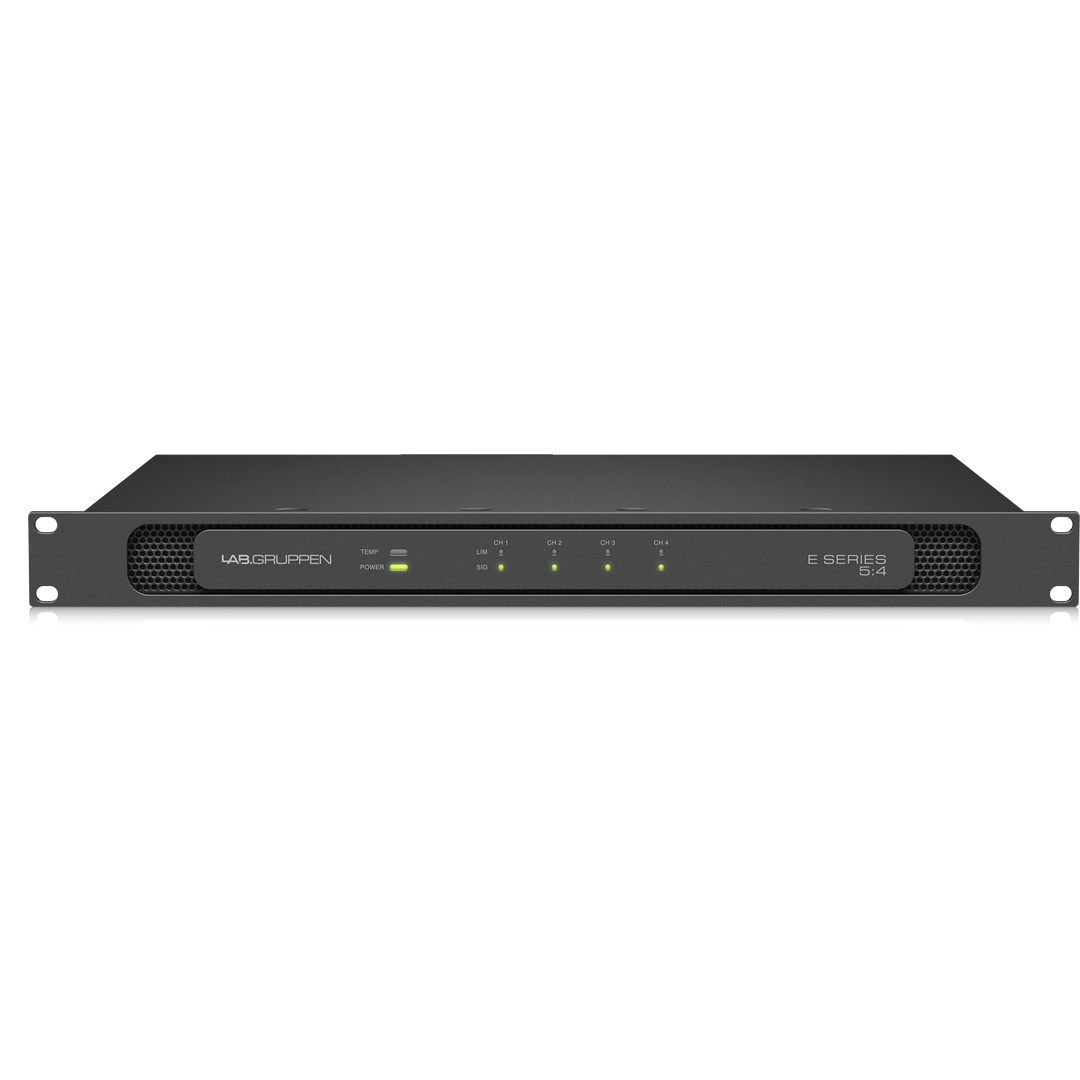

Efficient cooling is managed by temperature-controlled fans with front-to-back airflow. The aluminum front panel features power, temperature, signal, and limit LEDs for clear status indication. The GPIO connector facilitates advanced system integration, while balanced high-quality analog inputs and outputs ensure reliable connections.
