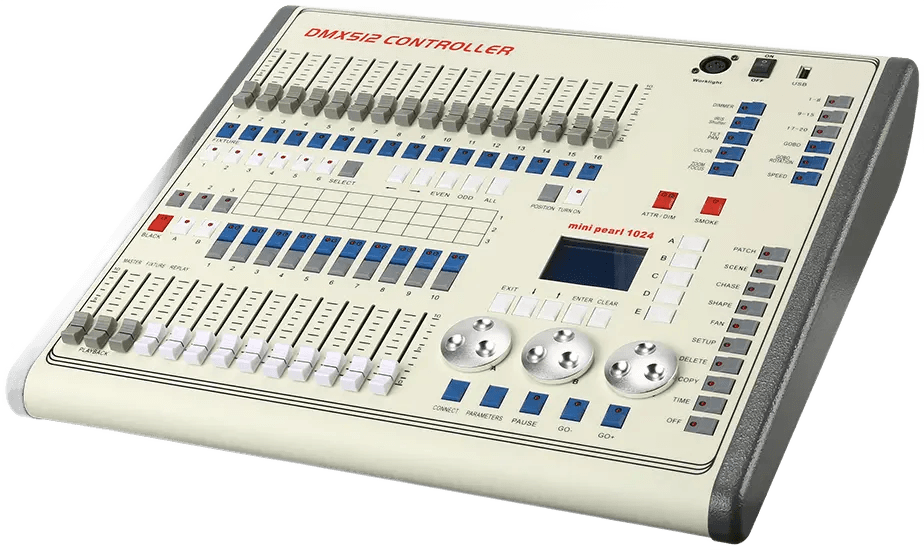

Mini 1024 Pearl DMX Controller
- Supplier
- Imix
- SKU
- IM-PEARL1024
- Availability
- Out of stock
- Brand
- Imix
The Mini 1024 Pearl is a compact yet powerful DMX512 controller designed for stage lighting, events, and live performances. With 1024 channels, 96-fixture capacity, and Avolite Pearl R20 library support, it delivers intuitive control over moving heads, LED fixtures, and effects. Features include 60 programmable scenes, 5 simultaneous shape generators, and USB connectivity for seamless show management.
Category
Details
DMX Channels
1024 (96 fixtures max)
Fixture Control
40 primary + 40 fine-tune channels per fixture
Scenes
60 (10 simultaneously runnable)
Chases
600 steps per chase
Shapes
5 simultaneous (Dimmer, Pan/Tilt, RGB, CMY, Gobo, Iris, Focus)
Library
Avolite Pearl R20 compatible
USB Support
Save/load shows, update libraries (FAT32)
Display
0.38-inch 4-digit LCD + 4-button navigation
Connectivity
DMX512 output, USB port
Power
AC 100-240V, 50/60Hz
Control Capabilities
1. Fixture Patching
Assign DMX addresses (001-512) manually or via auto-calculation
Repatch fixtures without losing programming
Swap pan/tilt channels for sideways-mounted fixtures
2. Advanced Effects
3. Scene & Chase Programming
4. Real-Time Control

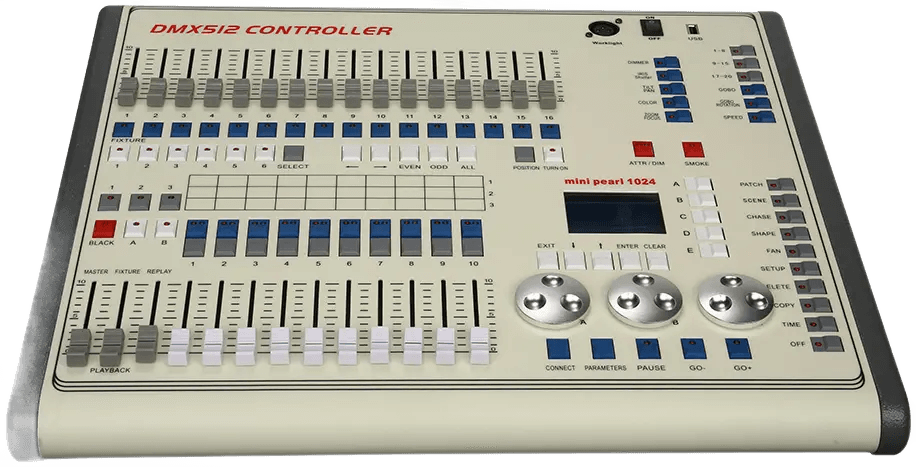

Front Panel Layout
Package Includes:
1 × Mini 1024 Pearl Controller
Power Cable
User Manual
Personality Builder Software CD (for custom fixture profiles)
The Mini 1024 Pearl is a compact yet powerful DMX512 controller designed for stage lighting, events, and live performances. With 1024 channels, 96-fixture capacity, and Avolite Pearl R20 library support, it delivers intuitive control over moving heads, LED fixtures, and effects. Features include 60 programmable scenes, 5 simultaneous shape generators, and USB connectivity for seamless show management.
Category
Details
DMX Channels
1024 (96 fixtures max)
Fixture Control
40 primary + 40 fine-tune channels per fixture
Scenes
60 (10 simultaneously runnable)
Chases
600 steps per chase
Shapes
5 simultaneous (Dimmer, Pan/Tilt, RGB, CMY, Gobo, Iris, Focus)
Library
Avolite Pearl R20 compatible
USB Support
Save/load shows, update libraries (FAT32)
Display
0.38-inch 4-digit LCD + 4-button navigation
Connectivity
DMX512 output, USB port
Power
AC 100-240V, 50/60Hz
Control Capabilities
1. Fixture Patching
Assign DMX addresses (001-512) manually or via auto-calculation
Repatch fixtures without losing programming
Swap pan/tilt channels for sideways-mounted fixtures
2. Advanced Effects
3. Scene & Chase Programming
4. Real-Time Control
Front Panel Layout
Package Includes:
1 × Mini 1024 Pearl Controller
Power Cable
User Manual
Personality Builder Software CD (for custom fixture profiles)
