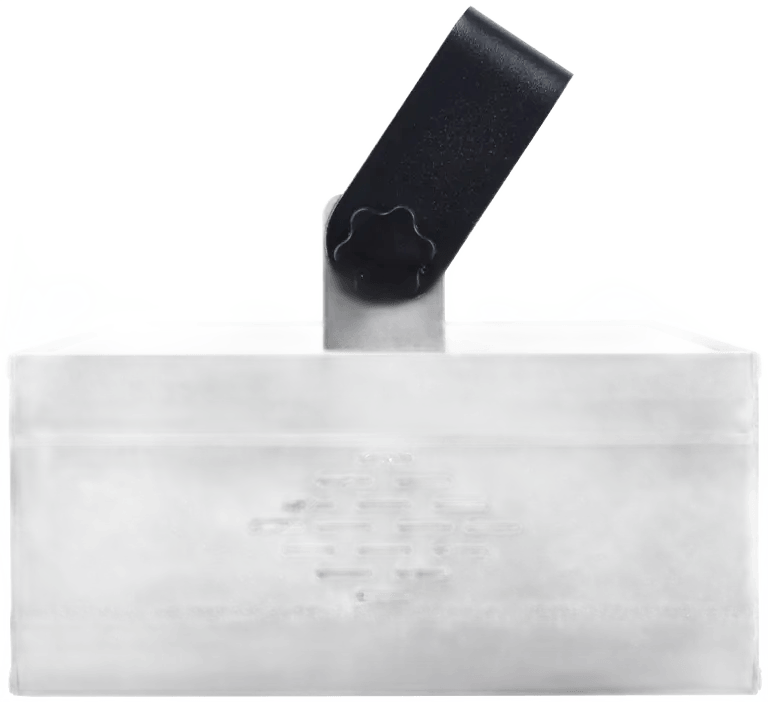

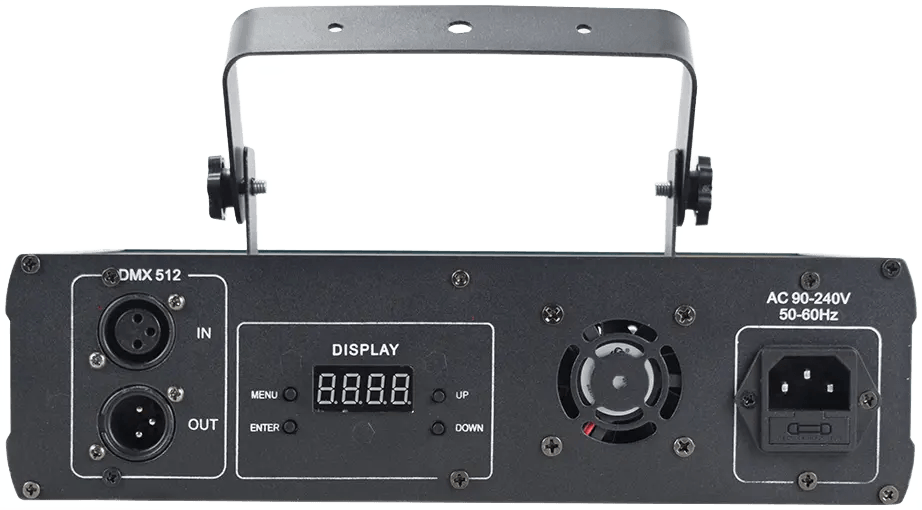

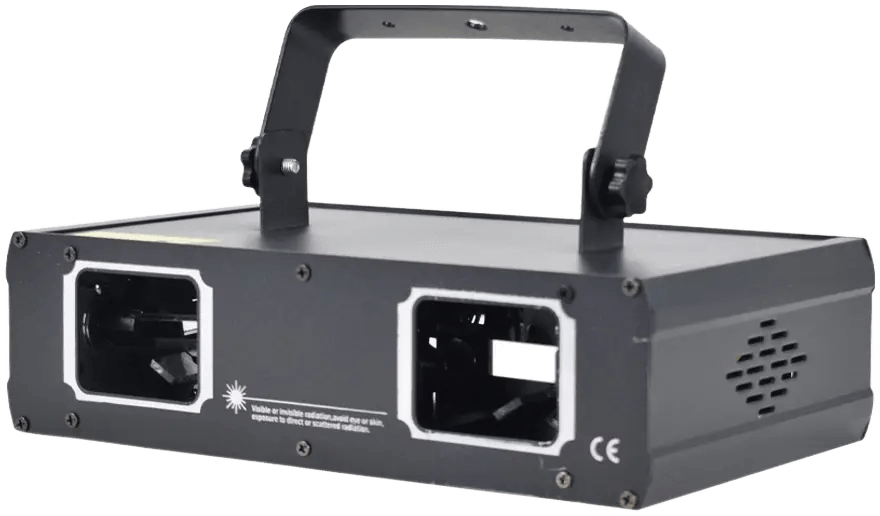

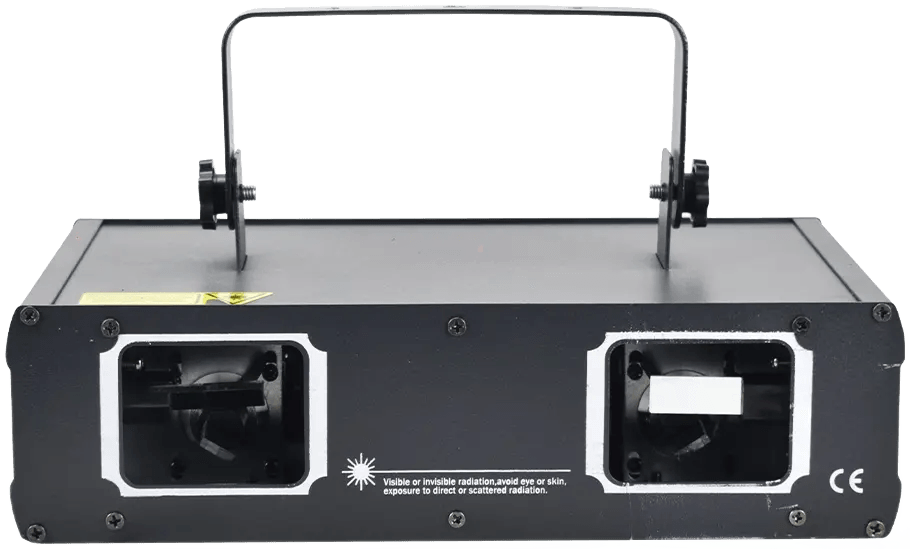

Stingray 2: DUAL-EYE FULL Color Laser System
- Supplier
- Imix
- SKU
- IM-STINGRAY2
- Availability
- Out of stock
- Brand
- Imix
The Stingray 2 is a high-performance dual-eye laser system featuring RGB/RGV color mixing, 25 pre-programmed patterns, and ±25° motorized scanning. Designed for stage shows, clubs, and events, it offers DMX512 control, sound activation, and master/slave synchronization for dynamic laser displays.
Category
Details
Laser Colors
Red (650nm) + Green (520nm) + Violet (405nm, RGB model only)
Scan System
Step motor (±25° range)
Patterns
25 built-in effects
Control
DMX512 (9 channels), auto, sound-active, master/slave
Power
AC 100-240V, 50/60Hz
Beam Divergence
<1.5mrad
Safety
Complies with IEC/EN 60825-1 (Class IIIB or IV depending on configuration)
Weight
[Specify if available]
DMX Channel Table (9 Channels)
CH
Function
Value Range
Effect
1
Laser Control
0-64: Off, 65-127: Pattern, 128-191: Auto, 192-255: Sound
Mode selection
2
Pattern Select
0-255
25 pattern options
3
Rotation Control
0-127: Position, 128-191: CW Speed, 192-255: CCW Speed
Direction/speed adjust
4
Horizontal Movement
0-127: Position, 128-255: Speed
Left/right scanning
5
Vertical Movement
0-127: Position, 128-255: Speed
Up/down scanning
6
Horizontal Position
0-127: Static, 128-255: Dynamic
Beam placement
7
Vertical Position
0-127: Static, 128-255: Dynamic
Beam placement
8
Size/Zoom
0-63: Fixed, 64-191: Min/Max Speed, 192-255: Zoom Speed
Beam scaling
9
Color Control
0-127: Static Color, 128-255: Color Chase
RGB/RGV mixing
Setup & Operation
1. Mode Selection (DIP Switches)
Mode
DIP Switch Settings
Function
DMX-512 Slave
1-9: Address Code, 10: ON
Full DMX control
Sound Active
1-10: OFF
Responds to audio input
Auto + Master
1: ON, 2-10: OFF
Built-in programs + sync others
Square Test
9: ON, Others: OFF
Diagnostic grid pattern
Dots Test
8-9: ON, Others: OFF
Diagnostic dot pattern
2. DMX Addressing
Set base address (001-512) via DIP switches or controller.
Use CH1 to toggle between off/pattern/auto/sound modes.
3. Safety Notes
⚠ Class IIIB/IV Laser - Avoid direct eye exposure (use professional mounting)
⚠ Ventilation - Ensure adequate cooling during operation
⚠ DMX Signal - Verify blue indicator for active signal reception
The Stingray 2 is a high-performance dual-eye laser system featuring RGB/RGV color mixing, 25 pre-programmed patterns, and ±25° motorized scanning. Designed for stage shows, clubs, and events, it offers DMX512 control, sound activation, and master/slave synchronization for dynamic laser displays.
Category
Details
Laser Colors
Red (650nm) + Green (520nm) + Violet (405nm, RGB model only)
Scan System
Step motor (±25° range)
Patterns
25 built-in effects
Control
DMX512 (9 channels), auto, sound-active, master/slave
Power
AC 100-240V, 50/60Hz
Beam Divergence
<1.5mrad
Safety
Complies with IEC/EN 60825-1 (Class IIIB or IV depending on configuration)
Weight
[Specify if available]
DMX Channel Table (9 Channels)
CH
Function
Value Range
Effect
1
Laser Control
0-64: Off, 65-127: Pattern, 128-191: Auto, 192-255: Sound
Mode selection
2
Pattern Select
0-255
25 pattern options
3
Rotation Control
0-127: Position, 128-191: CW Speed, 192-255: CCW Speed
Direction/speed adjust
4
Horizontal Movement
0-127: Position, 128-255: Speed
Left/right scanning
5
Vertical Movement
0-127: Position, 128-255: Speed
Up/down scanning
6
Horizontal Position
0-127: Static, 128-255: Dynamic
Beam placement
7
Vertical Position
0-127: Static, 128-255: Dynamic
Beam placement
8
Size/Zoom
0-63: Fixed, 64-191: Min/Max Speed, 192-255: Zoom Speed
Beam scaling
9
Color Control
0-127: Static Color, 128-255: Color Chase
RGB/RGV mixing
Setup & Operation
1. Mode Selection (DIP Switches)
Mode
DIP Switch Settings
Function
DMX-512 Slave
1-9: Address Code, 10: ON
Full DMX control
Sound Active
1-10: OFF
Responds to audio input
Auto + Master
1: ON, 2-10: OFF
Built-in programs + sync others
Square Test
9: ON, Others: OFF
Diagnostic grid pattern
Dots Test
8-9: ON, Others: OFF
Diagnostic dot pattern
2. DMX Addressing
Set base address (001-512) via DIP switches or controller.
Use CH1 to toggle between off/pattern/auto/sound modes.
3. Safety Notes
⚠ Class IIIB/IV Laser - Avoid direct eye exposure (use professional mounting)
⚠ Ventilation - Ensure adequate cooling during operation
⚠ DMX Signal - Verify blue indicator for active signal reception
From
R 1,919.00
Enquire about this product
Tell us what you need for Stingray 2: DUAL-EYE FULL Color Laser System. We will respond with availability, pricing, and next steps.
