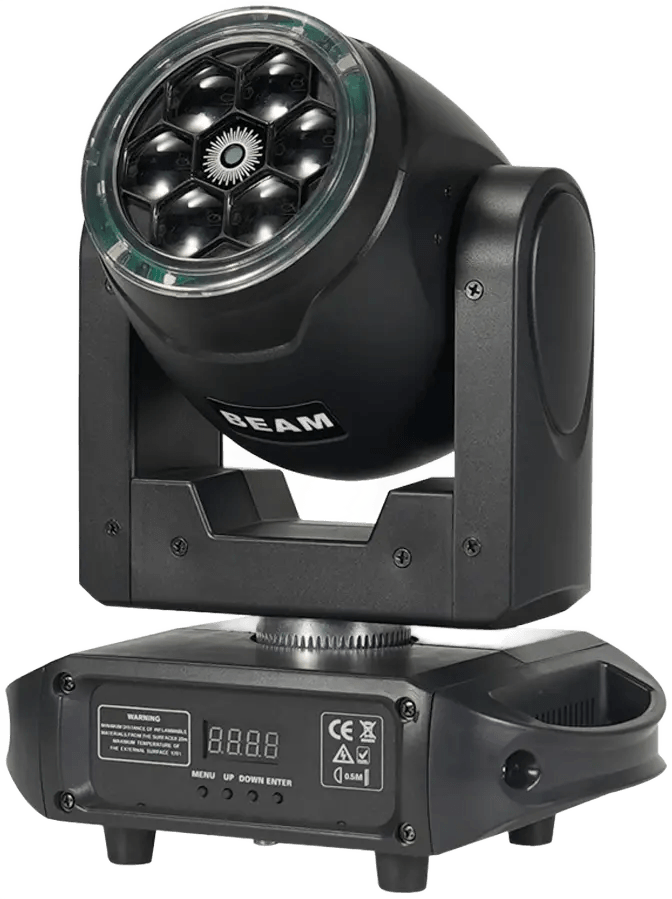

Viper 90: Bee Eye Moving Head Beam Light

The Viper 90 is a high-performance moving head beam light featuring a 6×15W RGBW “Bee Eye” LED and an LED ring wash for dynamic stage effects. With 540° pan / 270° tilt, 4° ultra-narrow beam, and 150mW green laser, it delivers sharp beams, vibrant colors, and atmospheric washes-perfect for concerts, clubs, and events.

Lighting Performance

Movement & Control

Power & Build

Safety & Usage Notes

⚠ Indoor Use Only - Not waterproof (avoid humidity/water)

⚠ Eye Safety - Avoid direct long-term exposure to beams/laser

⚠ Installation - Ensure proper ventilation and secure mounting

⚠ Voltage: Use only 100-240V power sources

DMX Channel Table (17CH Mode)

CH

Function

DMX Value

Effect

1

X-Axis (Pan)

000-255

0°-540° movement

2

X-Axis Fine-Tune

000-255

Precision adjustment

3

Y-Axis (Tilt)

000-255

0°-270° movement

4

Y-Axis Fine-Tune

000-255

Precision adjustment

5

Pan/Tilt Speed

000-255

Slow → Fast

6

Bee Eye Motor

7

Master Dimming

000-255

0-100% brightness

8

Strobe

010-255

1-20Hz strobe

9-12

Bee Eye RGBW Dimming

000-255

Individual color control

13

Laser Dimming

000-255

0-100% intensity

14-16

LED Ring Wash Color/Speed

013-255

7 colors + speed control

17

Reset/Macro

000-255

Auto-effects & sound response
