Wharfedale VersaDrive SC48 FIR Speaker Management System 4 in 8 out
- Supplier
- Wharfedale
- SKU
- WHAR-VERSADRIVE SC48 FIR
- Availability
- In stock
- Brand
- Wharfedale

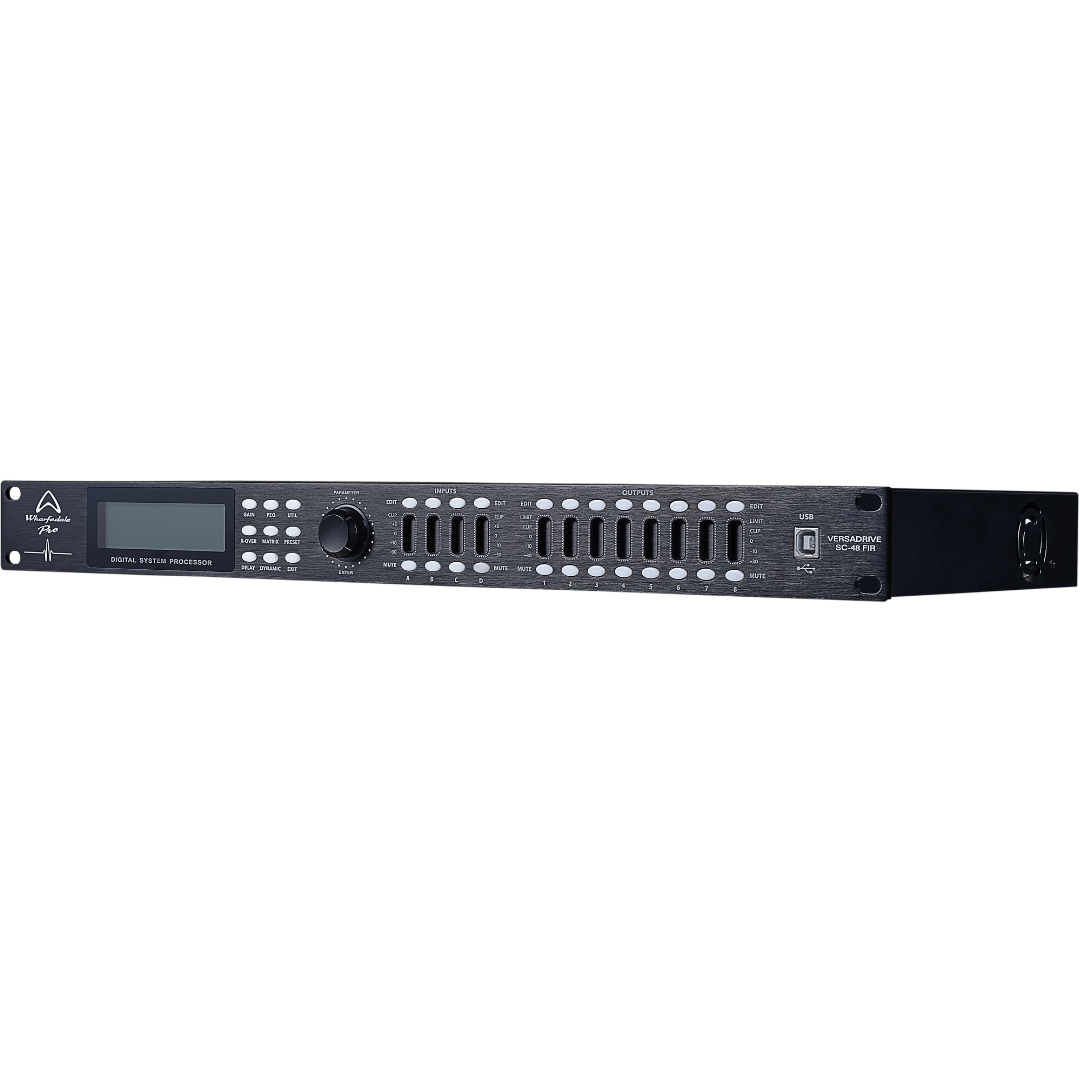

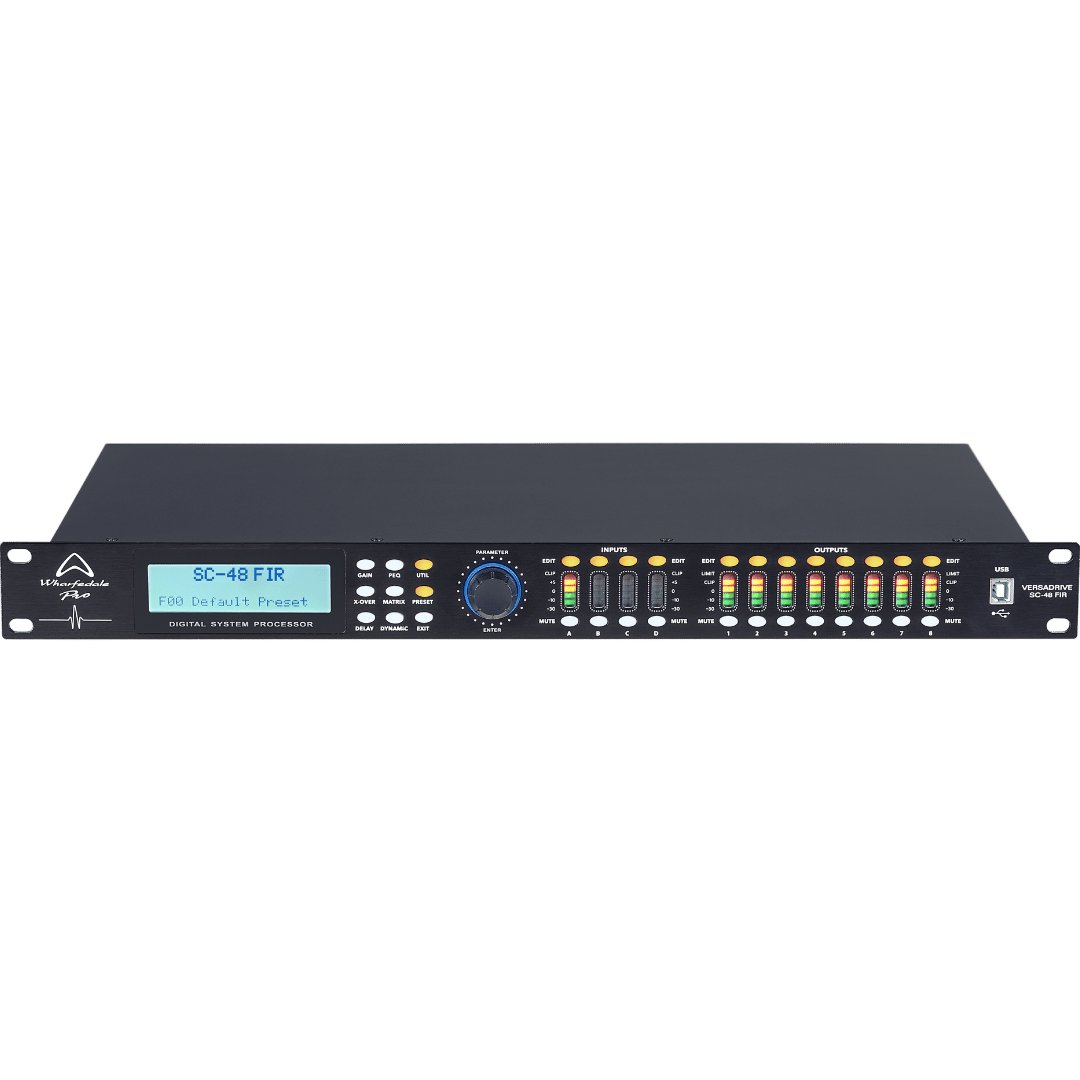

The VersaDrive SC48 FIR is a 1U rack-mount digital speaker management system with 4 inputs and 8 outputs, built around FIR filtering technology for linear phase response and precise system equalisation. Audio is handled by 24-bit/96kHz AD/DA converters and a 40-bit internal DSP engine.

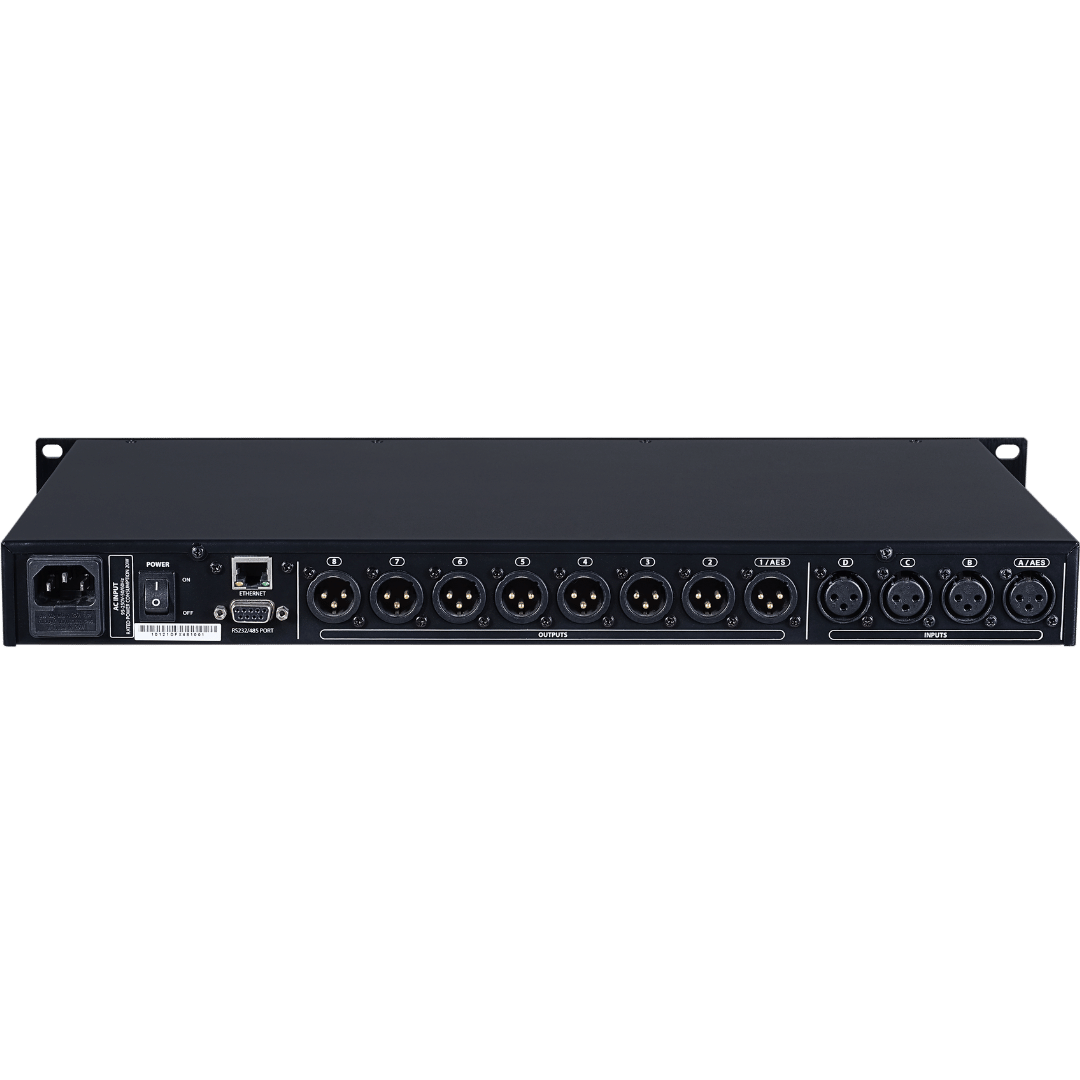

Each input channel offers gain, mute, link, high-pass and low-pass filters, noise gate, 8-band parametric EQ, 31-band graphic EQ, phase and delay control, while each output channel adds crossover, 5-band parametric EQ, gain, mute, compressor/limiter, phase, delay and linking. USB, RS485 (D-sub) and Ethernet (RJ45) connections allow remote control and editing from a PC, with front-panel LCD access to key settings for on-site adjustments.
The VersaDrive SC48 FIR is a 1U rack-mount digital speaker management system with 4 inputs and 8 outputs, built around FIR filtering technology for linear phase response and precise system equalisation. Audio is handled by 24-bit/96kHz AD/DA converters and a 40-bit internal DSP engine.
Each input channel offers gain, mute, link, high-pass and low-pass filters, noise gate, 8-band parametric EQ, 31-band graphic EQ, phase and delay control, while each output channel adds crossover, 5-band parametric EQ, gain, mute, compressor/limiter, phase, delay and linking. USB, RS485 (D-sub) and Ethernet (RJ45) connections allow remote control and editing from a PC, with front-panel LCD access to key settings for on-site adjustments.
From
R 15,738.00
Enquire about this product
Tell us what you need for Wharfedale VersaDrive SC48 FIR Speaker Management System 4 in 8 out. We will respond with availability, pricing, and next steps.
Related
Related products
From the same category in the catalog.
Audiocenter / Speaker Management & DSP
Audiocenter P48
Professional Audio Processor Introduction The Audiocenter P48 Professional Audio Processor integrates a variety of DSP functions, including compressors...
PROAUD002
Citronic / Speaker Management & DSP
Citronic DSM26 Digital Speaker Management System
Digital speaker management systems which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups.
S1-170.665CT
Celto / Speaker Management & DSP

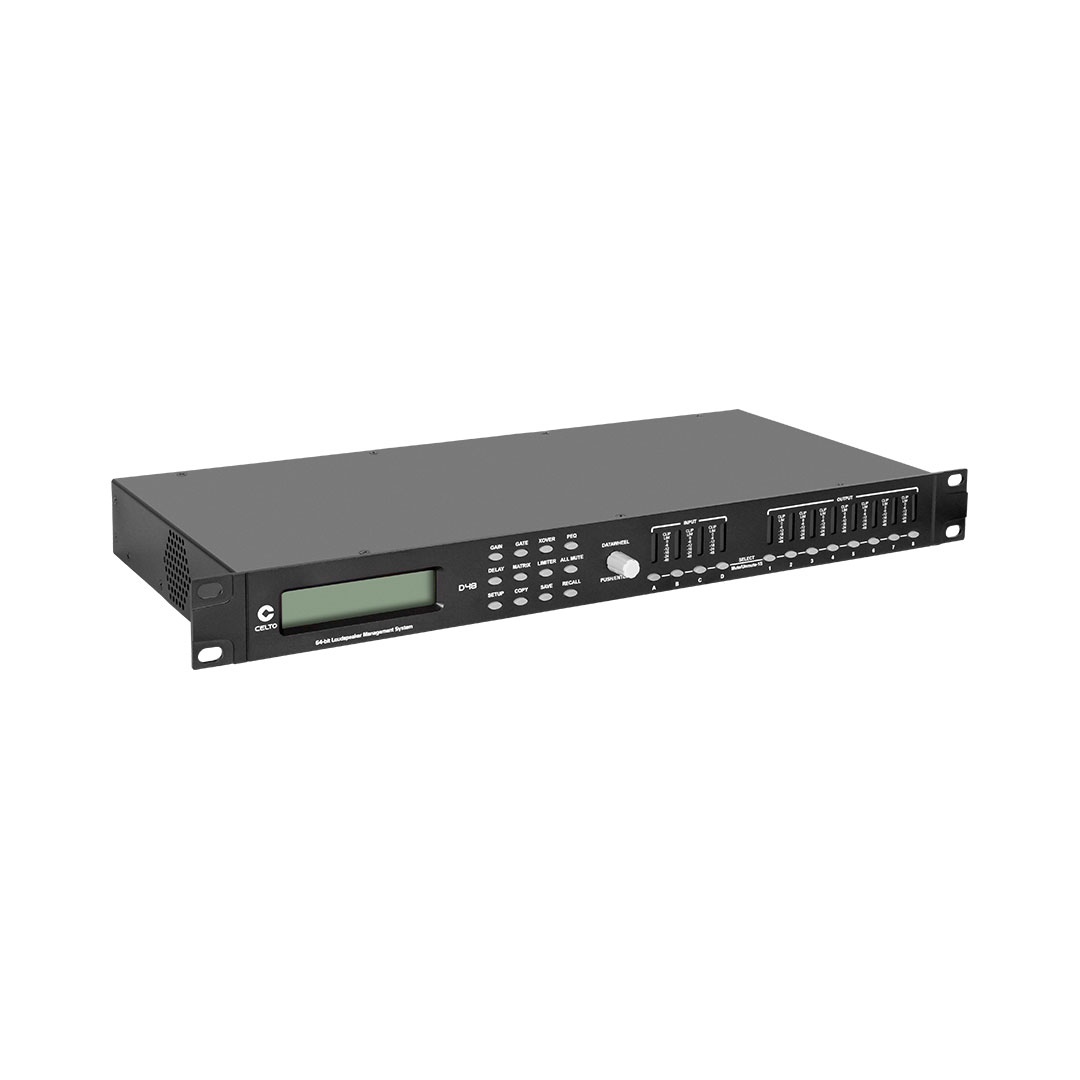

Celto Acoustique D48
4in / 8out Digital loudspeaker management system, SHARC ADSP-21489 400mHz floating point DSP
PROCEL004
FBT / Speaker Management & DSP
FBT DLM-480 Digital Speaker Management System
The DLM 480 is a DSP based 4 inputs x 8 output digital loudspeaker management processor, ideally suited for fixed installation.
S1-465.610FB
FBT / Speaker Management & DSP

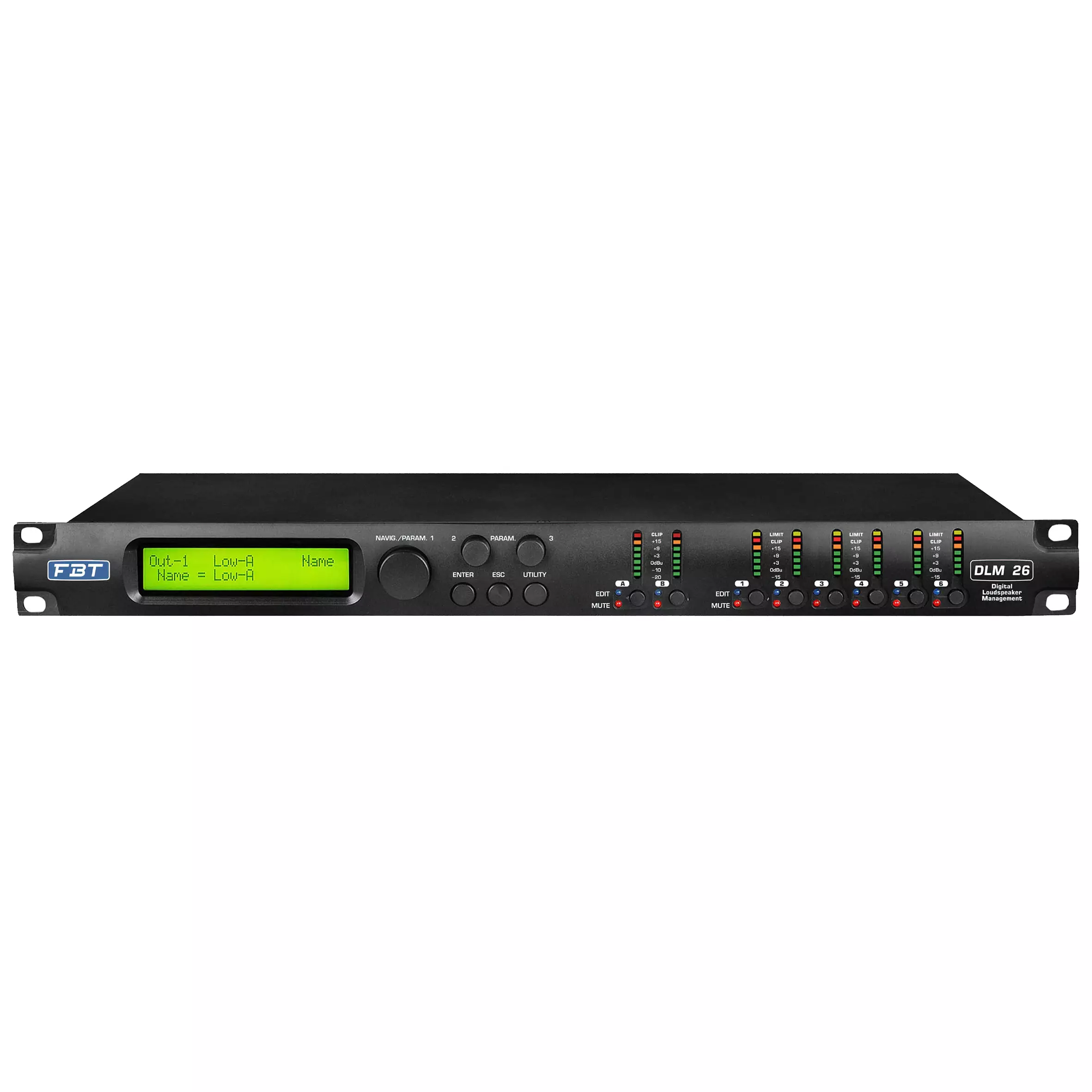

FBT DLM-26 Digital Speaker Management
